          Gebr. Engelfried oHG - Stockist for used machines

          Machinelist:


          Band saw

          used  Band saw PANHANS BSB 500


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5327 · Band saw

          PANHANS - BSB 500 - - neu -

          Technical details
          Wheel diameter 500 mm︱Cutting height 330 mm︱cutting width 480 mm︱Motor output 1,5 kW︱Table dimensions 495 x 670 mm︱Table tiltable 45 Grad︱
            Wheel diameter 500 mm
            Cutting height 330 mm
            cutting width 480 mm
            Motor output 1,5 kW
            Table dimensions 495 x 670 mm
            Table tiltable 45 Grad
          Datasheet
          Request / Contact
          used  Band saw PANHANS BSB 600


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6225 · Band saw

          PANHANS - BSB 600 - - neu -

          Technical details
          Wheel diameter 600 mm︱Cutting height 380 mm︱cutting width 570 mm︱Motor output 2,2 kW︱Table dimensions 810 x 590 mm︱table height 905 mm︱voltage 400 V / 50 Hz ︱range L-W-H 1120 x 750 x 2125 mm︱Weight 275 kg︱Dust suction hood 2 x 100 mm︱band speed 1550 m/min︱
            Wheel diameter 600 mm
            Cutting height 380 mm
            cutting width 570 mm
            Motor output 2,2 kW
            Table dimensions 810 x 590 mm
            table height 905 mm
            voltage 400 V / 50 Hz
            range L-W-H 1120 x 750 x 2125 mm
            Weight 275 kg
            Dust suction hood 2 x 100 mm
            band speed 1550 m/min
          Datasheet
          Request / Contact
          used  Band saw PANHANS BSB 700


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6195 · Band saw

          PANHANS - BSB 700 - - neu -

          Technical details
          Wheel diameter 700 mm︱Cutting height 420 mm︱cutting width 680 mm︱Motor output 3 kW︱Table dimensions 695 x 990 mm︱Table tiltable 45 Grad︱Dimensions (L/W/H) 1260x840x2270 mm︱machine weight ab. 400 kg︱
          Band saw machine Panhans BSB 700 - Machine stand in a shapely, modern, torsion-free double chamber welded steel construction - Upper and lower door secured by limit switches - upper and lower Panhans band saw blade guide APA II, size. 2- finely planed cast iron table - table top can be swiveled up to 45° - dynamic balanced band saw wheels with vulcanized rubber bandages - Stop ruler can be used to the left of the saw blade, stop profile can be folded over - Blade tension indicator - 1 saw blade 5140 x 25 x 0.7 mm, tooth width 9 mm - mechanical height adjustment of the saw blade guard by hand wheel with locking pinion - Rotary cam switch with star-delta start and emergency stop button Automatic motor brake with main switch and motor protection switch - Wheel diameter: 700mm - Drive motor: 3.0 kW / 4.0 hp - Voltage: 400 V / 50 Hz - Wheel speed: 715 rpm - Cutting height: 420 mm - Cutting width: 680 mm - Max blade length: 5140 mm - Table size: 990 x 695 mm - Table height: 920 mm - Extraction connection: 2 x 120 mm - Required space: 1260 x 840 x 2270 mm - Weight: 400kg (Technical information according to the manufacturer - without guarantee!)
            Wheel diameter 700 mm
            Cutting height 420 mm
            cutting width 680 mm
            Motor output 3 kW
            Table dimensions 695 x 990 mm
            Table tiltable 45 Grad
            Dimensions (L/W/H) 1260x840x2270 mm
            machine weight ab. 400 kg
            Description :
            Band saw machine Panhans BSB 700

            - Machine stand in a shapely, modern, torsion-free double chamber
            welded steel construction

            - Upper and lower door secured by limit switches

            - upper and lower Panhans band saw blade guide APA II, size. 2- finely planed
            cast iron table

            - table top can be swiveled up to 45°

            - dynamic balanced band saw wheels with vulcanized rubber bandages

            - Stop ruler can be used to the left of the saw blade, stop profile can be
            folded over

            - Blade tension indicator

            - 1 saw blade 5140 x 25 x 0.7 mm, tooth width 9 mm

            - mechanical height adjustment of the saw blade guard by hand wheel with
            locking pinion

            - Rotary cam switch with star-delta start and emergency stop button
            Automatic motor brake with main switch and motor protection switch

            - Wheel diameter: 700mm

            - Drive motor: 3.0 kW / 4.0 hp

            - Voltage: 400 V / 50 Hz - Wheel speed: 715 rpm

            - Cutting height: 420 mm

            - Cutting width: 680 mm

            - Max blade length: 5140 mm

            - Table size: 990 x 695 mm

            - Table height: 920 mm

            - Extraction connection: 2 x 120 mm

            - Required space: 1260 x 840 x 2270 mm

            - Weight: 400kg


            (Technical information according to the manufacturer - without guarantee!)
          Datasheet
          Request / Contact

          Jointing and Fine-cut Machine

          used  Jointing and Fine-cut Machine SCHEER FM-8


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-2612 · Jointing and Fine-cut Machine

          SCHEER - FM-8 - - gebraucht -

          Technical details
          Cutting length 3100 mm︱Cutting height 45 mm︱Motor output 1,8 kW︱Dimensions (L/W/H) 3950 x 470 x 920 mm︱machine weight ab. 400 kg︱
            Cutting length 3100 mm
            Cutting height 45 mm
            Motor output 1,8 kW
            Dimensions (L/W/H) 3950 x 470 x 920 mm
            machine weight ab. 400 kg
          500 €
          Datasheet
          Request / Contact

          Mitre saw

          used  Mitre saw GRAULE ZS 135


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5051 · Mitre saw

          GRAULE - ZS 135 - - neu -

          Technical details
          cutting width 430 mm︱Cutting height 135 mm︱Motor output 2 kW︱Dimensions (L/W/H) 1100x700x800 mm︱machine weight ab. 110 kg︱
          # 5051 Graule Crosscut Saw ZS 135, new -------------------------------------------------- ----------------------------------------------- - Crosscut and miter saw with a maximum cutting height of 135 mm - Sturdy cast iron - Precise ball bearing guide of the tool carriage on hardened and ground steel shafts - Manual feed - Rapid miter setting up to 65 ° - Re-adjustable positive stops - Lower blade guard can be connected to suction Technical specifications: --------------------------------- - Motor: 400 V / 2.0 kW - Speed: 3800 U / min - Cutting length: 440 mm (at 90 °) - Cutting height: 135 mm (at 90 °) - Miter horiz .: 45 ° -90 ° -25 ° - Saw blade Ø 350 mm - Suction 100 mm - 110 kg Crosscut and miter saws Accessories for -------------------------------------------------- ------------------------------------- All Crosscut and miter saws are in the basic equipment without blade Hydraulic feed brake (for type ZS 85 N to ZS 170 N) Price on request! Hydraulic feed brake (for type ZS 200 and ZS 200 N) Price on request! Pneumatic Sägeblattsprüheinrichtung Price on request! Pneumatic material clamping left side for types ZS 85 Price on request! Pneumatic material clamping on both sides of the top for the types ZS 135 ZS 200 N up Price on request! Pneumatic maintenance unit, consisting of water, pressure reducing valve with pressure gauge and lubricator Price on request! Pressure reducing valve with manometer Price on request! Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS 85 E, suitable for cutting cable channels, sectional area at 45 ° inclined: 72 mm x 380 mm Price on request! Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for cutting thin sheet steel channels Price on request! Machine stand for the types ZS 85 N, NS ZS 85, ZS 85 NS-SW, IS 135 and IS 170 Price on request! Machine stand for the types ZS 135 N and ZS 170 N Price on request! Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left with Scale and stop slide (for types ZS 85 N to ZS 170 N) Price on request! 3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N) Price on request! Cross ruler to cut acute angles (not type ZS 85) Price on request! Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °, 90 ° from the middle of (type ZS 170 N) Price on request! Holding device for angular aperture in Rolladenbau (only types ZS 135 ZS to 200 N) Price on request! Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting height 215 mm for the Rolladenbau Price on request! Digital angle display for horizontal angle adjustment Price on request! Digital angle indicator for horizontal and vertical angle adjustment (both sides tiltable only in conjunction with machine) Price on request! Laser device, laser beam of about 300 mm line length Price on request! Hydropneumatic feed unit with two-hand safety control (only for the application of aluminum machining) Price on request! Motorized miter for horizontal and vertical angle adjustment with nominal / actual display Price on request! Motorized miter for horizontal angle adjustment with nominal / actual display Price on request! Motorized miter for vertical angle adjustment with nominal / actual display Price on request! Chip bag with zipper for emptying (Machine type) Price on request! Suction mobile with 2.5 mtr. Hose, 400 V (not allowed in the commercial sector for wood dust) Price on request! Suction mobile with 2.5 mtr. Hose, 400 V clean air system with Approval "H2" Price on request! Automatic switch for machine with suction system Price on request! Special cutting lengths up to approx 600 mm on request Blades: --------------------- HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg Price on request! HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg Price on request! HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ neg (short service life) Price on request! HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg Price on request! HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg Price on request! HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg Price on request! HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg Price on request! HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg Price on request! HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg Price on request! HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg Price on request! HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg Price on request! HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg Price on request! techn. Details according to manufacturer - ohn guarantee! All genes mentioned here prices are excl. Of VAT currently valid. (Domestic)
            cutting width 430 mm
            Cutting height 135 mm
            Motor output 2 kW
            Dimensions (L/W/H) 1100x700x800 mm
            machine weight ab. 110 kg
            Description :
            # 5051 Graule Crosscut Saw ZS 135, new
            --------------------------------------------------
            -----------------------------------------------

            - Crosscut and miter saw with a maximum cutting height of 135 mm
            - Sturdy cast iron
            - Precise ball bearing guide of the tool carriage on hardened and ground steel
            shafts
            - Manual feed
            - Rapid miter setting up to 65 °
            - Re-adjustable positive stops
            - Lower blade guard can be connected to suction

            Technical specifications:
            ---------------------------------

            - Motor: 400 V / 2.0 kW
            - Speed: 3800 U / min
            - Cutting length: 440 mm (at 90 °)
            - Cutting height: 135 mm (at 90 °)
            - Miter horiz .: 45 ° -90 ° -25 °
            - Saw blade Ø 350 mm
            - Suction 100 mm
            - 110 kg

            Crosscut and miter saws Accessories for
            --------------------------------------------------
            -------------------------------------
            All Crosscut and miter saws are in the basic equipment without blade

            Hydraulic feed brake (for type ZS 85 N to ZS 170 N)
            Price on request!

            Hydraulic feed brake (for type ZS 200 and ZS 200 N)
            Price on request!

            Pneumatic Sägeblattsprüheinrichtung
            Price on request!

            Pneumatic material clamping left side for types ZS 85
            Price on request!

            Pneumatic material clamping on both sides of the top for the types ZS 135 ZS
            200 N up
            Price on request!

            Pneumatic maintenance unit, consisting of water, pressure reducing valve with
            pressure gauge and lubricator
            Price on request!

            Pressure reducing valve with manometer
            Price on request!

            Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS
            85 E,
            suitable for cutting cable channels, sectional area at 45 ° inclined: 72 mm x
            380 mm
            Price on request!

            Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for
            cutting thin sheet steel channels
            Price on request!

            Machine stand for the types ZS 85 N, NS ZS 85, ZS 85 NS-SW, IS 135 and IS 170
            Price on request!

            Machine stand for the types ZS 135 N and ZS 170 N
            Price on request!

            Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left
            with
            Scale and stop slide (for types ZS 85 N to ZS 170 N)
            Price on request!

            3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N)
            Price on request!

            Cross ruler to cut acute angles (not type ZS 85)
            Price on request!

            Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °, 90
            ° from the middle of (type ZS 170 N)
            Price on request!

            Holding device for angular aperture in Rolladenbau (only types ZS 135 ZS to 200
            N)
            Price on request!

            Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting
            height 215 mm for the Rolladenbau
            Price on request!

            Digital angle display for horizontal angle adjustment
            Price on request!

            Digital angle indicator for horizontal and vertical angle adjustment (both
            sides tiltable only in conjunction with machine)
            Price on request!

            Laser device, laser beam of about 300 mm line length
            Price on request!

            Hydropneumatic feed unit with two-hand safety control (only for the application
            of aluminum machining)
            Price on request!

            Motorized miter for horizontal and vertical angle adjustment with nominal /
            actual display
            Price on request!

            Motorized miter for horizontal angle adjustment with nominal / actual display
            Price on request!

            Motorized miter for vertical angle adjustment with nominal / actual display
            Price on request!

            Chip bag with zipper for emptying (Machine type)
            Price on request!

            Suction mobile with 2.5 mtr. Hose, 400 V (not allowed in the commercial sector
            for wood dust)
            Price on request!

            Suction mobile with 2.5 mtr. Hose, 400 V clean air system with Approval "H2"
            Price on request!

            Automatic switch for machine with suction system
            Price on request!

            Special cutting lengths up to approx 600 mm on request


            Blades:
            ---------------------
            HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg
            Price on request!

            HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg
            Price on request!

            HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ
            neg (short service life)
            Price on request!

            HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg
            Price on request!

            HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg
            Price on request!

            HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg
            Price on request!

            HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg
            Price on request!

            HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg
            Price on request!

            HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg
            Price on request!

            HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg
            Price on request!

            HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg
            Price on request!

            HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg
            Price on request!

            techn. Details according to manufacturer - ohn guarantee!
            All genes mentioned here prices are excl. Of VAT currently valid. (Domestic)
          Datasheet
          Request / Contact
          used  Mitre saw GRAULE ZS 170 N


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5052 · Mitre saw

          GRAULE - ZS 170 N - - neu -

          Technical details
          cutting width 420 mm︱Cutting height ja mm︱Motor output 2 kW︱Cutting height at 45° 115 mm︱Dimensions (L/W/H) 1100x700x800 mm︱machine weight ab. 150 kg︱
          # 5052 Graule cutting and miter saw ZS 170 N, new -------------------------------------------------- ------------------------------ ----------------- - Crosscut and miter saw with a maximum cutting height of 170 mm - Cast iron construction - Precise ball bearing guide of the tool carrier on hardened and grinded steel shafts - Manual feed - Rapid miter setting up to 65 ° horizontally and 45 ° vertically (up 60 ° ZS 200N) - Re-adjustable positive stops - Lower blade guard can be connected to suction Technical Specifications: --------------------------------- - Motor: 400 V / 2.0 kW - Speed: 3500 U / min - Cutting length: 430 mm (at 90 °) - Cutting height: 170 mm (at 90 °) - Miter horiz .: 45 ° -90 ° -25 ° - Miter verti .: 90 ° -45 ° (left) - Saw blade Ø 420 mm - Suction 100 mm - 120 kg Accessories for Crosscut and miter saws -------------------------------------------------- ------------------------------ ------- All Crosscut and miter saws are the basic equipment without Sawblade Hydraulic feed brake (for type ZS 85 N to ZS 170 N) Price On Request! Hydraulic feed brake (for type ZS 200 and ZS 200 N) Price On Request! Pneumatic Sägeblattsprüheinrichtung Price On Request! Pneumatic material clamping left side for types ZS 85 Price On Request! Pneumatic material clamping on both sides of the top for the types ZS 135 to ZS 200 N Price On Request! Pneumatic maintenance unit, consisting of water, Pressure reducing valve with pressure gauge and lubricator Price On Request! Pressure reducing valve with pressure gauge Price On Request! Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS 85 E, suitable inclined to cut cable ducts Cutting Capacity at 45 °: 72 mm x 380 mm Price On Request! Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for Cutting of thin-walled sheet steel channels Price On Request! Machine stand for the types ZS 85N, ZS 85 NS, ZS 85 NS-SW, ZS 135 and ZS 170 Price On Request! Machine stand for the types ZS 135 N and ZS 170 N Price On Request! Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left Page Scale and stop slide (for types ZS 85 N to ZS 170 N) Price On Request! 3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N) Price On Request! Cross ruler to cut acute angles (not type ZS 85) Price On Request! Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °, from mid 90 ° (only type ZS 170 N) Price On Request! Holding device for angular aperture in Rolladenbau (only types ZS 135 to ZS 200 N) Price On Request! Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting height 215 mm for the Rolladenbau Price On Request! Digital angle display for horizontal angle adjustment Price On Request! Digital angle indicator for horizontal and vertical angle adjustment (only in conjunction with machine on both sides tiltable) Price On Request! Laser device, laser beam with about 300 mm line length Price On Request! Hydropneumatic feed unit with two-hand safety control (only for the application range of aluminum machining) Price On Request! Motorized miter for horizontal and vertical angle adjustment with target / actual display Price On Request! Motorized miter for horizontal angle adjustment with Target / actual display Price On Request! Motorized miter for vertical angle adjustment with Target / actual display Price On Request! Chip bag with zipper for emptying (Machine type) Price On Request! Suction mobile 2.5 mtr. Hose, 400 V (in the commercial sector Wood dust is not allowed) Price On Request! Suction mobile 2.5 mtr. Hose, 400 V system with clean air Approval "H2" Price On Request! Automatic switch for machine with suction system Price On Request! Special cutting lengths up to approx 600 mm on request Blades: --------------------- HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg Price On Request! HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ neg (short service life) Price On Request! HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg Price On Request! HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg Price On Request! HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg Price On Request! HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg Price On Request! HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg Price On Request! HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg Price On Request! HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg Price On Request! techn. Details according to manufacturer - ohn guarantee! All genes mentioned here prices are excl. Of VAT currently valid. (Inland)
            cutting width 420 mm
            Cutting height ja mm
            Motor output 2 kW
            Cutting height at 45° 115 mm
            Dimensions (L/W/H) 1100x700x800 mm
            machine weight ab. 150 kg
            Description :
            # 5052 Graule cutting and miter saw ZS 170 N, new
            --------------------------------------------------
            ------------------------------
            -----------------

            - Crosscut and miter saw with a maximum cutting height of 170 mm
            - Cast iron construction
            - Precise ball bearing guide of the tool carrier on hardened and
            grinded steel shafts
            - Manual feed
            - Rapid miter setting up to 65 ° horizontally and 45 ° vertically (up
            60 ° ZS 200N)
            - Re-adjustable positive stops
            - Lower blade guard can be connected to suction

            Technical Specifications:
            ---------------------------------

            - Motor: 400 V / 2.0 kW
            - Speed: 3500 U / min
            - Cutting length: 430 mm (at 90 °)
            - Cutting height: 170 mm (at 90 °)
            - Miter horiz .: 45 ° -90 ° -25 °
            - Miter verti .: 90 ° -45 ° (left)
            - Saw blade Ø 420 mm
            - Suction 100 mm
            - 120 kg


            Accessories for Crosscut and miter saws
            --------------------------------------------------
            ------------------------------
            -------
            All Crosscut and miter saws are the basic equipment without
            Sawblade

            Hydraulic feed brake (for type ZS 85 N to ZS 170 N)
            Price On Request!

            Hydraulic feed brake (for type ZS 200 and ZS 200 N)
            Price On Request!

            Pneumatic Sägeblattsprüheinrichtung
            Price On Request!

            Pneumatic material clamping left side for types ZS 85
            Price On Request!

            Pneumatic material clamping on both sides of the top for the types ZS 135 to ZS
            200 N
            Price On Request!

            Pneumatic maintenance unit, consisting of water,
            Pressure reducing valve with pressure gauge and lubricator
            Price On Request!

            Pressure reducing valve with pressure gauge
            Price On Request!

            Remodeling the crosscut saw type ZS 85 for electrical installation on type ZS
            85 E,
            suitable inclined to cut cable ducts Cutting Capacity at 45 °: 72 mm
            x 380 mm
            Price On Request!

            Pole-changing motor 400 volts, n = 1350/2750 rev / min for type ZS 85 E, for
            Cutting of thin-walled sheet steel channels
            Price On Request!

            Machine stand for the types ZS 85N, ZS 85 NS, ZS 85 NS-SW, ZS 135 and ZS
            170
            Price On Request!

            Machine stand for the types ZS 135 N and ZS 170 N
            Price On Request!

            Portable machine substructure with 1.5 mtr. Roller conveyors on each side, left
            Page
            Scale and stop slide (for types ZS 85 N to ZS 170 N)
            Price On Request!

            3 kW three-phase brake motor 380-400 volts (only types ZS 135 ZS to 170 N)
            Price On Request!

            Cross ruler to cut acute angles (not type ZS 85)
            Price On Request!

            Machine via handwheel on both sides tiltable, left to 45 ° right up to 60 °,
            from mid 90 ° (only type ZS 170 N)
            Price On Request!

            Holding device for angular aperture in Rolladenbau (only types ZS 135 to ZS
            200 N)
            Price On Request!

            Remodeling the crosscut saw type ZS 200 Saw blade diameter 550 mm, cutting
            height
            215 mm for the Rolladenbau
            Price On Request!

            Digital angle display for horizontal angle adjustment
            Price On Request!

            Digital angle indicator for horizontal and vertical angle adjustment (only
            in conjunction with machine on both sides tiltable)
            Price On Request!

            Laser device, laser beam with about 300 mm line length
            Price On Request!

            Hydropneumatic feed unit with two-hand safety control (only for
            the application range of aluminum machining)
            Price On Request!

            Motorized miter for horizontal and vertical angle adjustment
            with target / actual display
            Price On Request!

            Motorized miter for horizontal angle adjustment with
            Target / actual display
            Price On Request!

            Motorized miter for vertical angle adjustment with
            Target / actual display
            Price On Request!

            Chip bag with zipper for emptying (Machine type)
            Price On Request!

            Suction mobile 2.5 mtr. Hose, 400 V (in the commercial sector
            Wood dust is not allowed)
            Price On Request!

            Suction mobile 2.5 mtr. Hose, 400 V system with clean air
            Approval "H2"
            Price On Request!

            Automatic switch for machine with suction system
            Price On Request!

            Special cutting lengths up to approx 600 mm on request


            Blades:
            ---------------------
            HM circular saw blade for wood 300 x 3,2 x 40 mm 72 WZ neg
            Price On Request!

            HM circular saw blade for aluminum and plastics 300 x 3,3 x 40 mm 96 FTZ neg
            Price On Request!

            HM circular saw blade for thin-walled steel profiles 305 x 2,2 x 40 mm 80 FTZ
            neg (short service life)
            Price On Request!

            HM circular saw blade for wood 350 x 4,0 x 40 mm 42 WZ neg
            Price On Request!

            HM circular saw blade for wood 350 x 3,2 x 40 mm 72 WZ neg
            Price On Request!

            HM circular saw blade for aluminum and plastics 350 x 3.5 x 40 mm 108 FTZ neg
            Price On Request!

            HM circular saw blade for wood 420 x 4,0 x 40 mm 48 WZ neg
            Price On Request!

            HM circular saw blade for wood 420x3,5x40 mm 84 WZ neg
            Price On Request!

            HM circular saw blade for aluminum and plastics 420 x 3.8 x 40 mm 108 FTZ neg
            Price On Request!

            HM circular saw blade for wood 520 x 4,4 x 50 mm 60 WZ neg
            Price On Request!

            HM circular saw blade for aluminum and plastics 520 x 4.4 x 50 mm 120 FTZ neg
            Price On Request!

            HM circular saw blade for aluminum and plastics 550 x 4,0 x 50 mm 180 FTZ neg
            Price On Request!

            techn. Details according to manufacturer - ohn guarantee!
            All genes mentioned here prices are excl. Of VAT currently valid.
            (Inland)
          Datasheet
          Request / Contact

          Single-blade stroke circular saw

          used  Single-blade stroke circular saw MABA Swissline-Power 5200 CE


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6120 · Single-blade stroke circular saw

          MABA - Swissline-Power 5200 CE - - neu -

          Technical details
          Cutting height 205 mm︱Motor output 11 kW︱cutting width 450 mm︱Cutting length 5200 mm︱
            Cutting height 205 mm
            Motor output 11 kW
            cutting width 450 mm
            Cutting length 5200 mm
          Datasheet
          Request / Contact
          used  Single-blade stroke circular saw MABA Swissline Economic


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6314 · Single-blade stroke circular saw

          MABA - Swissline Economic - - neu -

          Technical details
          Cutting height 120 mm︱Motor output 11 kW︱cutting width 420 mm︱Cutting length 5200 mm︱
            Cutting height 120 mm
            Motor output 11 kW
            cutting width 420 mm
            Cutting length 5200 mm
          Datasheet
          Request / Contact

          Combined planing-thicknessing machine

          used  Combined planing-thicknessing machine PANHANS 546/100


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6308 · Combined planing-thicknessing machine

          PANHANS - 546/100 - - neu -

          Technical details
          Working width 630 mm︱Working height 3 - 250 mm︱Motor output 7,5 kW︱Feed speed 7 und 14 m/min.︱Dimensions (length / width) 2700 x 1700 mm︱weight ca. 1.450 kg︱Dust suction hood 2 x 160 mm︱
          COMBINED PLANNING AND THICKNESSING MACHINE 546|100 Manufacturer description Solid German mechanical engineering Convenient planing and thicknessing without machine conversion, dimensionally stable and precise dressing tables, as there is a folding up omitted, for planing widths up to 630 mm and dual operation up to 315 mm each PANHANS solid steel cutter block with 4 Tersa reversible knives SURFACE PLANE: Table length 2555 mm, planed with toothed table lips Electromotive adjustment of the feed table via button with digital display the chip removal max. 5 mm Dressing fence can be inclined up to 45°, in an extremely smooth-running steel guide stored Dressing ruler, anodised, with swiveling auxiliary stop 1545 Bridge protection TXF 1570 with hinged cover THICKNESS PLANER: Planing height from 3 to 250 mm, shortest part approx. 315 mm Max. chip removal 8 mm Pendulum mounted feed rollers Segmented rubber infeed and 2 rubber outfeed rollers with segmented pressure beams for gentle and safe workpiece feed Thicknessing table length 1100 mm, finely planed with table extension 400 mm, without table slide rollers Electrical height adjustment of the thicknessing table, non-tilting to 4 trapezoidal thread spindles Positioning control 4.3" touchscreen Two feed speeds: 7 + 14 m/min Push button circuit with electronic soft start Electronic, wear-free engine brake Planed in the factory CE compliant GS tested -------------------------------------- Basic price in the above equipment on request! We would be happy to send you the complete price list with options on request! (Technical data according to the manufacturer - without guarantee!)
            Working width 630 mm
            Working height 3 - 250 mm
            Motor output 7,5 kW
            Feed speed 7 und 14 m/min.
            Dimensions (length / width) 2700 x 1700 mm
            weight ca. 1.450 kg
            Dust suction hood 2 x 160 mm
            Description :
            COMBINED PLANNING AND THICKNESSING MACHINE 546|100

            Manufacturer description
            Solid German mechanical engineering
            Convenient planing and thicknessing without machine conversion, dimensionally
            stable and
            precise dressing tables, as there is a folding up
            omitted, for planing widths up to 630 mm and dual operation up to 315 mm each
            PANHANS solid steel cutter block with 4 Tersa reversible knives
            SURFACE PLANE:
            Table length 2555 mm, planed with toothed table lips
            Electromotive adjustment of the feed table via button with digital display
            the chip removal max. 5 mm
            Dressing fence can be inclined up to 45°, in an extremely smooth-running steel
            guide
            stored
            Dressing ruler, anodised, with swiveling auxiliary stop 1545
            Bridge protection TXF 1570 with hinged cover
            THICKNESS PLANER:
            Planing height from 3 to 250 mm, shortest part approx. 315 mm
            Max. chip removal 8 mm
            Pendulum mounted feed rollers
            Segmented rubber infeed and 2 rubber outfeed rollers with segmented pressure
            beams
            for gentle and safe workpiece feed
            Thicknessing table length 1100 mm, finely planed with table extension 400 mm,
            without
            table slide rollers
            Electrical height adjustment of the thicknessing table, non-tilting to 4
            trapezoidal thread spindles
            Positioning control 4.3" touchscreen
            Two feed speeds: 7 + 14 m/min
            Push button circuit with electronic soft start
            Electronic, wear-free engine brake
            Planed in the factory
            CE compliant
            GS tested
            --------------------------------------
            Basic price in the above equipment on request!

            We would be happy to send you the complete price list with options on request!

            (Technical data according to the manufacturer - without guarantee!)
          Datasheet
          Request / Contact

          Surface planer

          used  Surface planer PANHANS 334/20


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5303 · Surface planer

          PANHANS - 334/20 - - neu -

          Technical details
          Working width 410 mm︱Length of the planing table 2850 mm︱Number of knives 4 (Tersa) St.︱Motor output 5,5 kW︱loading dimensions L x W x H 2950 x 1260 mm︱weight 870 kg︱
            Working width 410 mm
            Length of the planing table 2850 mm
            Number of knives 4 (Tersa) St.
            Motor output 5,5 kW
            loading dimensions L x W x H 2950 x 1260 mm
            weight 870 kg
          Datasheet
          Request / Contact
          used  Surface planer FIMAL PF 530 N Partnership Edition


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6751 · Surface planer

          FIMAL - PF 530 N Partnership Edition - - neu -

          Technical details
          Working width 530 mm︱Length of the planing table 3.000 mm︱Number of knives 4-TERSA St.︱Motor output 5,5 kW︱
          FIMAL surface planer type PF 530 N --------------------------------------- NEW MACHINE "Partnership Edition" Technical specifications: --------------------------------------- Planing table dimensions: 3,000 x 530 mm Feed table length: 1,800 mm Dressing fence dimensions: 1,500 x 175 mm Swivel range stop: 0 - 45 ° 4-knife cutterblock system TERSA d = 120mm: 5,000 rpm Max. Chip removal dressing according to CE: 8 mm Motor 380 volts / 50 Hz .: 5.5 kW Sound level according to EN 27960: 82.9 - 88.9 dB (A) Basic equipment: Electrics according to CE standards Magnetic brake Extraction nozzle d = 150mm Bridge protection control panel operated above Original AIGNER aluminum stop with integrated auxiliary stop --------------------------------------- Special offer from stock: 8,990.00 euros --------------------------------------- All prices plus VAT / plus Freight and assembly according to expenditure Please also note the special offer together with FIMAL Thickness planer SP 63 A (Technical information according to the manufacturer - without guarantee!)
            Working width 530 mm
            Length of the planing table 3.000 mm
            Number of knives 4-TERSA St.
            Motor output 5,5 kW
            Description :
            FIMAL surface planer type PF 530 N
            ---------------------------------------
            NEW MACHINE "Partnership Edition"

            Technical specifications:
            ---------------------------------------

            Planing table dimensions: 3,000 x 530 mm
            Feed table length: 1,800 mm
            Dressing fence dimensions: 1,500 x 175 mm
            Swivel range stop: 0 - 45 °
            4-knife cutterblock system TERSA d = 120mm: 5,000 rpm
            Max. Chip removal dressing according to CE: 8 mm
            Motor 380 volts / 50 Hz .: 5.5 kW
            Sound level according to EN 27960: 82.9 - 88.9 dB (A)

            Basic equipment:
            Electrics according to CE standards
            Magnetic brake
            Extraction nozzle d = 150mm
            Bridge protection
            control panel operated above
            Original AIGNER aluminum stop with integrated auxiliary stop

            ---------------------------------------
            Special offer from stock: 8,990.00 euros
            ---------------------------------------
            All prices plus VAT / plus Freight and assembly according to expenditure

            Please also note the special offer together with FIMAL
            Thickness planer SP 63 A

            (Technical information according to the manufacturer - without guarantee!)
          Datasheet
          Request / Contact

          Thicknessing machine

          used  Thicknessing machine PANHANS 436/100


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5304 · Thicknessing machine

          PANHANS - 436/100 - - neu -

          Technical details
          Working width 630 mm︱Working height 3,300 mm︱Motor output 7,5 kW︱Number of knives 4 St.︱Feed speed 7 + 14 m/min.︱loading dimensions L x W x H 1070 x 1200 x 1060 mm︱weight 1050 kg︱
          Panhans thickness planer 436/100 ------------------------------------------------------ TECHNICAL SPECIFICATIONS ------------------------------------------------------ Planing width 630 mm Planing height 3 - 300 mm Max. chip removal 8 mm Thickness table length 1100 mm Knife shaft speed 5000 rpm Motor power feed 0.55 / 0.75 kW / 0.75 / 1.0 HP Suction connection Ø 160 mm left, right usable Feed speed 7 + 14 m/min Engine power 7.5 kW / 10 hp Voltage 400V / 50Hz Required space approx. 1070 x 1200 x 1060 mm Color RAL 7035 light gray and RAL 5000 violet blue Net weight approx. 1050 kg TECHNICAL DESCRIPTION ------------------------------------------------------ Solid German mechanical engineering For thickness planing for planing widths up to 630 mm and planing heights from 3 to 300 mm, compact and ergonomic machine dimensions Planed in the factory PANHANS solid steel cutter block Ø 125 mm with 4 Tersa reversible knives Pendulum mounted feed rollers Segmented rubber infeed and outfeed rollers with a diameter of 90 mm ensure gentle and safe workpiece feed With segmented pressure bar Electrical height adjustment of the thicknessing table, non-tilting to 4 trapezoidal thread spindles With a finely planed thicknessing table Positioning control 4.3" touch screen Two feed speeds: 7 + 14 m/min Automatic star-delta start Mechanical engine brake Suction socket Ø 160 mm, can be used on the left or right CE compliant GS tested ----------------------------------------------------- Price in the above version on request! Further accessories and options as well as a complete price list on request! (technical data according to the manufacturer - without guarantee!)
            Working width 630 mm
            Working height 3,300 mm
            Motor output 7,5 kW
            Number of knives 4 St.
            Feed speed 7 + 14 m/min.
            loading dimensions L x W x H 1070 x 1200 x 1060 mm
            weight 1050 kg
            Description :
            Panhans thickness planer 436/100
            ------------------------------------------------------

            TECHNICAL SPECIFICATIONS
            ------------------------------------------------------
            Planing width 630 mm
            Planing height 3 - 300 mm
            Max. chip removal 8 mm
            Thickness table length 1100 mm
            Knife shaft speed 5000 rpm
            Motor power feed 0.55 / 0.75 kW / 0.75 / 1.0 HP
            Suction connection Ø 160 mm left, right usable
            Feed speed 7 + 14 m/min
            Engine power 7.5 kW / 10 hp
            Voltage 400V / 50Hz
            Required space approx. 1070 x 1200 x 1060 mm

            Color RAL 7035 light gray and
            RAL 5000 violet blue
            Net weight approx. 1050 kg

            TECHNICAL DESCRIPTION
            ------------------------------------------------------
            Solid German mechanical engineering
            For thickness planing for planing widths up to 630 mm and planing heights from
            3 to 300 mm,
            compact and ergonomic machine dimensions
            Planed in the factory
            PANHANS solid steel cutter block Ø 125 mm with 4 Tersa reversible knives
            Pendulum mounted feed rollers
            Segmented rubber infeed and outfeed rollers with a diameter of 90 mm ensure
            gentle and
            safe workpiece feed
            With segmented pressure bar
            Electrical height adjustment of the thicknessing table, non-tilting to 4
            trapezoidal thread spindles
            With a finely planed thicknessing table
            Positioning control 4.3" touch screen
            Two feed speeds: 7 + 14 m/min
            Automatic star-delta start
            Mechanical engine brake
            Suction socket Ø 160 mm, can be used on the left or right
            CE compliant
            GS tested
            -----------------------------------------------------
            Price in the above version on request!

            Further accessories and options as well as a complete price list on request!

            (technical data according to the manufacturer - without guarantee!)
          Datasheet
          Request / Contact
          used  Thicknessing machine FIMAL SP 63 A Partnership Edition


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-2689 · Thicknessing machine

          FIMAL - SP 63 A Partnership Edition - - neu -

          Technical details
          Working width 630 mm︱Working height 3-310 mm︱Motor output 7,5 kW︱Number of knives 4-TERSA St.︱Feed speed 6-20 m/min.︱Vertikal stroke elektrisch
          FIMAL thickness planer type SP 63 A ----------------------------------------------------- NEW MACHINE "Partnership Edition" Technical data / basic equipment: ----------------------------------------------------- - 4-knife V-shaft, d = 120 mm, speed 4,800 rpm. - Table height adjustment via 4 trapezoidal spindles - chip removal up to 8 mm - Min. / Max. working height: 3/310 mm - Min. workpiece length: 250 mm - Suction nozzle 150 mm - Electrics and protections in accordance with CE standards - Planing width: 630 mm - Motor: 50 Hz., 5.5 kW / 7.5 HP with manual star-delta switch - Infinitely adjustable feed speed from 6 to 20 m/min. - Motorized table height adjustment with electronic positioning device (Input of planing height via keyboard with electronic display) - Sound level according to EN 27960: 86 – 90 dB(A) Stock machine additionally equipped with the following options: -------------------------------------------------- ------------- - Motor with 7.5 kW / 10 hp - Thicknessing table extension, 600 mm - 2x rubberized pull-out roller - TERSA system knife shaft, including reversible knives ----------------------------------------------------- Promotional price from stock: on request! ----------------------------------------------------- All prices ex warehouse plus VAT/plus. Freight and assembly at cost (Technical information according to the manufacturer - without guarantee!)
            Working width 630 mm
            Working height 3-310 mm
            Motor output 7,5 kW
            Number of knives 4-TERSA St.
            Feed speed 6-20 m/min.
            Vertikal stroke elektrisch
            Description :
            FIMAL thickness planer type SP 63 A
            -----------------------------------------------------
            NEW MACHINE "Partnership Edition"

            Technical data / basic equipment:
            -----------------------------------------------------
            - 4-knife V-shaft, d = 120 mm, speed 4,800 rpm.
            - Table height adjustment via 4 trapezoidal spindles
            - chip removal up to 8 mm
            - Min. / Max. working height: 3/310 mm
            - Min. workpiece length: 250 mm
            - Suction nozzle 150 mm
            - Electrics and protections in accordance with CE standards

            - Planing width: 630 mm
            - Motor: 50 Hz., 5.5 kW / 7.5 HP
            with manual star-delta switch
            - Infinitely adjustable feed speed from 6 to 20 m/min.
            - Motorized table height adjustment with electronic positioning device
            (Input of planing height via keyboard with electronic display)
            - Sound level according to EN 27960: 86 – 90 dB(A)

            Stock machine additionally equipped with the following options:
            -------------------------------------------------- -------------
            - Motor with 7.5 kW / 10 hp
            - Thicknessing table extension, 600 mm
            - 2x rubberized pull-out roller
            - TERSA system knife shaft, including reversible knives

            -----------------------------------------------------
            Promotional price from stock: on request!
            -----------------------------------------------------
            All prices ex warehouse plus VAT/plus. Freight and assembly at cost

            (Technical information according to the manufacturer - without guarantee!)
          Datasheet
          Request / Contact

          Spindle moulders with tiltable spindle

          used  Spindle moulders with tiltable spindle PANHANS 245 medio


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5402 · Spindle moulders with tiltable spindle

          PANHANS - 245 medio - - neu -

          Technical details
          Table dimensions 1340,800 mm︱Motor output 7,5 kW︱Spindle diameter 30 mm︱reus 1500 - 10000 stufenlos U/min︱Weight 980 kg︱
            Table dimensions 1340,800 mm
            Motor output 7,5 kW
            Spindle diameter 30 mm
            reus 1500 - 10000 stufenlos U/min
            Weight 980 kg
          Datasheet
          Request / Contact
          used  Spindle moulders with tiltable spindle PANHANS 245 classic plus


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5850 · Spindle moulders with tiltable spindle

          PANHANS - 245 classic plus - - neu -

          Technical details
          Table dimensions 1100,760 mm︱Motor output 5,5 kW︱Spindle diameter 30 mm︱reus 3000/4500/6000/9000 U/min︱Weight 800 kg︱
            Table dimensions 1100,760 mm
            Motor output 5,5 kW
            Spindle diameter 30 mm
            reus 3000/4500/6000/9000 U/min
            Weight 800 kg
          Datasheet
          Request / Contact

          Wood Milling Machine

          used  Wood Milling Machine GÖTZINGER UP 1730 Universalprofilierer


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6482 · Wood Milling Machine

          GÖTZINGER - UP 1730 Universalprofilierer - - neu -

          Technical details
          Table dimensions - mm︱Motor output 7,5 kW︱Spindle diameter 40 mm︱reus 6000 U/min︱Weight 300 kg︱Year 2018
          Universal profiler Götzinger UP 1730 Machine for frontal and cross-side machining. Different application technology for wood products First-class surface quality of machined workpieces due to high speed, Particularly stable bearing of the milling shaft and through synchronous milling. Rapid tool change through one-sided mounted cutter shaft and through swiveling clamping device. The whole work process, such as clamping, pneumatic-hydraulic table feed with speed control (stepless) and fast reverse. By exchanging the milling segments and by changing the attachment points can be up to ten different with a single profile milling set Create profile companies. Technical specifications: Cutting depth max .: 30 mm Milling height max .: 150 mm Voltage cross section per stroke max. Softwood: 60 cm² Motor power: 7.5 kW Speed: 6000 rpm Tool circle maximum: 180 mm Tool span: 200 mm Milling spindle diameter: 40 mm Milling spindle clamping length: 200 mm Working cycles max. per minute: 8 Compressed air connection: 6 bar Air requirement per working cycle: 14 l Air supply extraction: 3000m³ / h Dimensions: L / W / H: 1300 x 700 x 1170 mm Weight: 300 kg 380 V, 50 Hz (technical data according to manufacturer - without guarantee!)
            Table dimensions - mm
            Motor output 7,5 kW
            Spindle diameter 40 mm
            reus 6000 U/min
            Weight 300 kg
            Year 2018
            Description :
            Universal profiler Götzinger UP 1730

            Machine for frontal and cross-side machining.

            Different application technology for wood products

            First-class surface quality of machined workpieces due to high speed,
            Particularly stable bearing of the milling shaft and through synchronous
            milling.
            Rapid tool change through one-sided mounted cutter shaft and through
            swiveling clamping device.
            The whole work process, such as clamping, pneumatic-hydraulic table feed
            with speed control (stepless) and fast reverse.
            By exchanging the milling segments and by changing the attachment points
            can be up to ten different with a single profile milling set
            Create profile companies.

            Technical specifications:

            Cutting depth max .: 30 mm
            Milling height max .: 150 mm
            Voltage cross section per stroke max.
            Softwood: 60 cm²
            Motor power: 7.5 kW
            Speed: 6000 rpm
            Tool circle maximum: 180 mm
            Tool span: 200 mm
            Milling spindle diameter: 40 mm
            Milling spindle clamping length: 200 mm
            Working cycles max. per minute: 8

            Compressed air connection: 6 bar
            Air requirement per working cycle: 14 l
            Air supply extraction: 3000m³ / h

            Dimensions: L / W / H: 1300 x 700 x 1170 mm
            Weight: 300 kg

            380 V, 50 Hz


            (technical data according to manufacturer - without guarantee!)
          Datasheet
          Request / Contact

          cnc-processing center

          used  cnc-processing center MASTERWOOD Project 485,Innenausbau,Platte


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6518 · cnc-processing center

          MASTERWOOD - Project 485,Innenausbau,Platte - - neu - Beckhoff CNC

          Technical details
          axis stroke (X,Y,Z) 3950,2145,555 mm︱Number of spindle head vertical 13 St.︱Number of spindles head horizontal 6 St.︱Number of tools 22 St.︱Number of milling agregates 1 St.︱working dimensions 3200x2000x200 mm︱Motor output 12 kW︱Control Beckhoff CNC︱Number of axles 5 St.︱
          Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Auslegerbauweise (dadurch sehr große PLatten auflegbar) für Innenausbau, Plattenbearbeitungen aller Art. Kurze Zusammenfassung: --------------------------------------------- Verfahrwege X = 3950 mm; Y = 2145 mm; Z = 555 mm Arbeitsbereich: X = 3200 mm; Y = 2000 mm; Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspindeln Y-Richtung mit 2 doppelten Horizontalbohrspindeln X-Richtung und 1 doppelte Horizontalbohrspindel in Y-Richtung Sägeaggregat in Bohrkopf integriert Karussellwerkzeugwechsler mit 22 Plätzen und 102 mm Rasterabstand Konsolentisch mit 6 Traversen Werkstückanhebevorrichtung 24 Stk. Vakuummspanner für Platten und Innenausbau 1 Stk. Vakuumpumpe 100m3/h CE Schutzvorrichtung mit Bumper und Schutzgitter Referenzanschläge mit Endlauffühler Referenzring für Winkelgetriebe KIT Bogenbearbeitung (Vorbereitung für Einsatz von Massivholzspannern) Automatische Messvorrichtung für Werkzeuglänge Fernbedienung Beckhoff-Steuerung und Bosch Motorisierung Konstruktions-Software Masterwork: 2D-Wop für Standardanwendung Plattenbearbeitung/Innenausbau, Rundbogen, Türen Masterwork Funktion Lamelloverbindung Master 3D Stufe 2: für komplexere Bearbeitungen, optional auch erweiterbar für 5-Achs voll interpolierend Fracht und Montage innerhalb Deutschland Technik und Dienstleistungen gemäß beiliegender ausführliche Beschreibung --------------------------------------------- SONDERPREIS in dieser Ausführung: 99.990,00 Euro zzgl. St.! --------------------------------------------- Ausführliche Beschreibung siehe PDF anbei. Mehr Optionen auf Anfrage! (technische Angaben laut Hersteller- ohne Gewähr!)
            axis stroke (X,Y,Z) 3950,2145,555 mm
            Number of spindle head vertical 13 St.
            Number of spindles head horizont. 6 St.
            Number of tools 22 St.
            Number of milling agregates 1 St.
            working dimensions 3200x2000x200 mm
            Motor output 12 kW
            Control Beckhoff CNC
            Number of axles 5 St.
            Description :
            Masterwood Project 385 CNC-Bearbeitungszentrum
            ---------------------------------------------
            5-Achs CNC-Bearbeitungszentrum in Auslegerbauweise (dadurch sehr große PLatten
            auflegbar) für Innenausbau, Plattenbearbeitungen aller Art.

            Kurze Zusammenfassung:
            ---------------------------------------------
            Verfahrwege
            X = 3950 mm; Y = 2145 mm; Z = 555 mm

            Arbeitsbereich:
            X = 3200 mm; Y = 2000 mm; Z = 200 mm

            1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme

            1 Stk. fest installierter Bohrkopf mit 19 Spindeln
            mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung
            mit 6 einzeln abrufbaren Vertikalbohrspindeln Y-Richtung
            mit 2 doppelten Horizontalbohrspindeln X-Richtung
            und 1 doppelte Horizontalbohrspindel in Y-Richtung
            Sägeaggregat in Bohrkopf integriert

            Karussellwerkzeugwechsler mit 22 Plätzen und 102 mm Rasterabstand

            Konsolentisch mit 6 Traversen

            Werkstückanhebevorrichtung

            24 Stk. Vakuummspanner für Platten und Innenausbau

            1 Stk. Vakuumpumpe 100m3/h

            CE Schutzvorrichtung mit Bumper und Schutzgitter

            Referenzanschläge mit Endlauffühler

            Referenzring für Winkelgetriebe

            KIT Bogenbearbeitung (Vorbereitung für Einsatz von Massivholzspannern)

            Automatische Messvorrichtung für Werkzeuglänge

            Fernbedienung

            Beckhoff-Steuerung und Bosch Motorisierung

            Konstruktions-Software Masterwork:
            2D-Wop für Standardanwendung Plattenbearbeitung/Innenausbau, Rundbogen, Türen
            Masterwork Funktion Lamelloverbindung

            Master 3D Stufe 2:
            für komplexere Bearbeitungen,
            optional auch erweiterbar für 5-Achs voll interpolierend

            Fracht und Montage innerhalb Deutschland

            Technik und Dienstleistungen gemäß beiliegender
            ausführliche Beschreibung

            ---------------------------------------------

            SONDERPREIS in dieser Ausführung: 99.990,00 Euro zzgl. St.!

            ---------------------------------------------

            Ausführliche Beschreibung siehe PDF anbei. Mehr Optionen auf Anfrage!


            (technische Angaben laut Hersteller- ohne Gewähr!)
          Datasheet
          Request / Contact
          used  cnc-processing center MASTERWOOD TF 100 2.0 Partnership Edition


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6514 · cnc-processing center

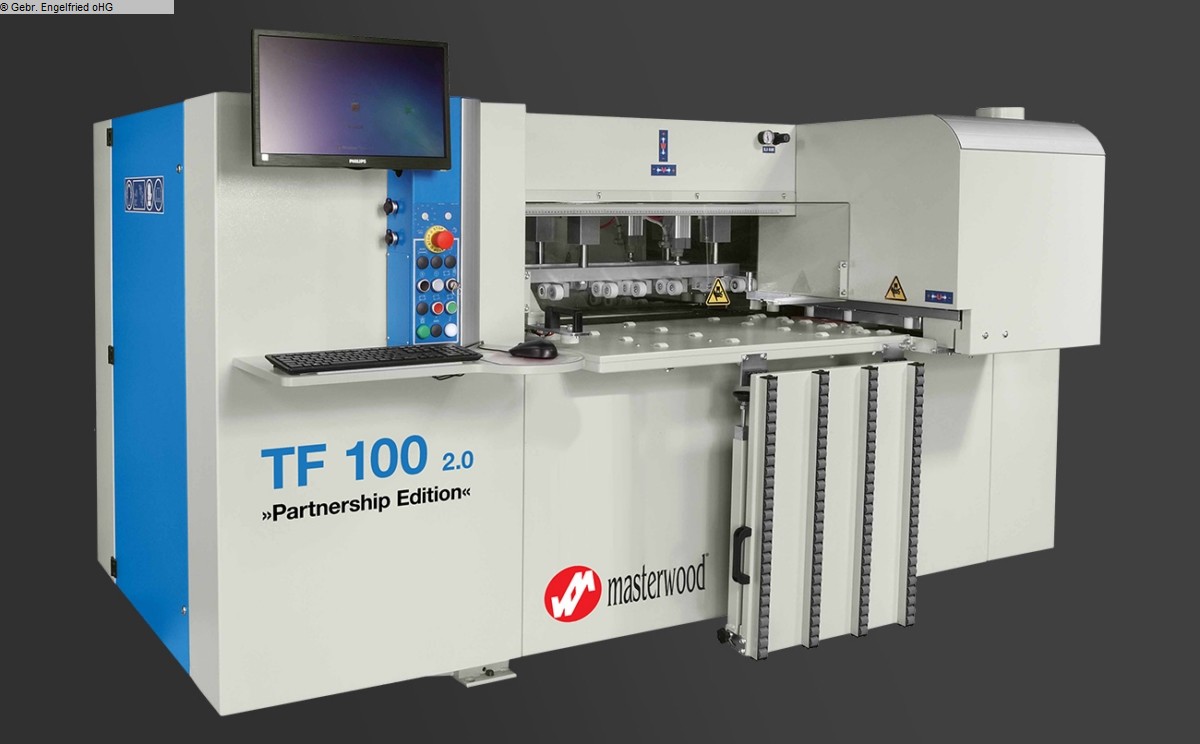

          MASTERWOOD - TF 100 2.0 Partnership Edition - - 2022 -

          Technical details
          axis stroke (X,Y,Z) unbegrenzt, 1000, 60 mm︱Number of spindle head vertical 10 St.︱Number of spindles head horizontal 6 St.︱milling motor 4,5 kW︱
          CNC-Bearbeitungszentrum zum HAMMER-PREIS! MASTERWOOD TF 100 2.0 Partnership Edition Ausstattung: -------------------------------------- - Bohrkopf mit 16 Bohrern für 5-seitige Bearbeitung - Nutsägeaggregat - Fräsaggregat mit 6-fach-Werkzeugwechsler - inkl. Nutsägeblatt, 2 Diamantfräser, 1 WPL-Schlichtfräser - Vorrüstung für CLAMEX- und Türenpaket - 2 klappbare Rollenbahnen - programmgesteuerte Zentralschmierung -------------------------------------- AKTIONSPREIS 44.990,00 Euro (zzgl. MwSt.)ab Werk -------------------------------------- Fracht, Aufstellung, Einweisung innerhalb Deutschland inklusive 8-stündiger Schulung individuell und vor Ort AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt., Preis bisher 2.582,00 Euro) Die Optionen der Partnership Edition: -------------------------------------- Komplettpaket für CLAMEX Verbinder bestehend aus: -------------------------------------- - Winkelgetriebe mit CLAMEX Fräser inkl. spezieller Aufnahme im Werkzeugwechsler und Softwareanpassung - Original Lamello Werkzeugpaket: 2x P-System Diamantfräser, Fräsdorn - Gutschein für 300 Paar CLAMEX P-14, 80 Paar TENSO P-14 AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.) Tür-Komplettpaket bestehend aus: -------------------------------------- - Winkelgetriebe mit Schlosskastenfräser, spezieller Aufnahme im - Werkzeugwechsler, Softwareanpassung inkl. Makro für Schlosskasten AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.) Softwarepaket PaletteCAD start + CAM Anbindung -------------------------------------- Unsere Premium-Software mit perfekt abgestimmter CNC Schnittstelle – bei uns selbstverständliche bereits inklusive CLAMEX Makro. AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt.) Aktionspreise gültig solange Vorrat reicht. Zwischenverkauf vorbehalten. Ausführliche Beschreibung: Das Masterwood CNC Bearbeitungszentrum PROJECT TF ist ideal für komplexe CNC Bearbeitung auf kleinstem Raum, sowohl für Massivholz, Plattenwerkstoffe oder sonstige Materialien. Vorteile: - Sehr geringer Platzbedarf - Höchste Zeitersparnis durch extrem schnelle Fertigungszeiten - Schnelle Amortisation durch geringen Anschaffungspreis - Schnelles Erlernen der Technik durch einfachste Bedienung - Sauberkeit der Werkstücke bei geringer Absaugleistung durch Bearbeitung von unten - Extrem schnelle, einfache und variable Programmierung mit der Software MASTERWORK (Standard) - Extrem schnelle und einfache Programmierung kompletter Schränke durch den Einsatz von TrunCAD (Option) Technische Daten: Achsen: X-Achse: Max. Werkstücklänge: unbegrenzt, Min. Werkstücklänge: 250mm Verfahr-Geschwindigkeit: 0-25 m/min. Y-Achse: Max. Werkstückbreite: 1.000mm für alle Aggregate Min. Werkstückbreite: 80mm Verfahr-Geschwindigkeit: 0-50 m/min. Z-Achse: Max. Werkstückstärke: 60mm Min. Werkstückstärke: 10mm Verfahr-Geschwindigkeit: 0-20 m/min. Die minimalen und maximalen Werkstückgrößen sind abhängig vom Gewicht und auch vom Verhältnis Länge zu Breite! Aggregate: 16er Bohrkopf: vertikale Spindeln in X-Richtung: 5 Stück vertikale Spindeln in Y-Richtung: 5 Stück horizontale Doppelbohrspindel in X-Richtung: 2+2 Stück horizontale Doppelbohrspindel in Y-Richtung: 1+1 Stück Abstand Bohrspindeln: 32mm Drehzahl Bohrspindeln: 4.000 U/min. Motor: 1,7 kW Nutsäge: in X-Richtung Drehzahl: 4.000 U/min. Max. Sägeblattdurchmesser: 125mm Motor: 1,7 kW (Die Nutsäge ist im Bohrkopf integriert) Steuerung: Personal Computer HP Compaq 6000 Pro SFF PC Prozessor: Intel Celeron E3300 @ 2.50GHZ RAM: 1 GB Hard Disk: 300 GB CD-ROM Laufwerk Farbbildschirm 17’’ LCD Videokarte integriert 512 MB 2 Ethernet Karten Schnittstellen: 2 Serielle RS 232 - 1 Parallele - 10 USB - 1 ESATA Tastatur: Eingang PS 2 Mouse: Eingang PS 2 Betriebssystem: Windows 7 professional Programm: MASTERWORK-MASCHINEN-VERSION Weitere Daten: Benötigter Luftdruck: 8 bar Luftverbrauch: nax. 750 l/min. Absaugung: Volumen: 2.000 m³/h Luftgeschwindigkeit: 25 - 30 m/sec. Absaugstutzen: 1 x 150mm Weitere Ausstattungsmerkmale: - Lufttische am Arbeitsbereich - Rollentisch im Ein- und Auslauf - Sensor für Plattenvermessung - Kugelumlaufspindel- und Linear-Führungen - Zahnstangenantrieb - Zentralschmierung - Import von DXF Dateien "PARTNERSHIP EDITION" bestehend aus: Fräsaggregat, einschl. MASTERWORK Softwareerweiterung Drehzahl: 1.000 bis 18.000 U/min. Motor: 4,5 kW mit ISO 30 Aufnahme Einschl. integrierte Absaugsteuerung (Beim Bohren wird nur der Bohrkopf, beim Fräsen nur das Fräsaggregat abgesaugt) 6-fach Werkzeugwechsler 3 ISO 30 Kegel einschl. Spannzange Werkzeugbestückung, bestehend aus: HW Dübelbohrer: 5 Stück 5mm – GL 70mm - Sacklochbohrer 1 Stück 5mm – GL 70mm - Durchgangsbohrer 4 Stück 8mm – GL 57,5mm - Sacklochbohrer 2 Stück 10mm – GL 57,5mm – Sacklochbohrer 1 Stück 10mm – GL 70mm – Sacklochbohrer 1 Stück 8mm – GL 70mm - Sacklochbohrer 1 Stück 15mm – GL 70mm - Sacklochbohrer 1 Stück 35mm – GL 70mm - Sacklochbohrer 1 HW Nutsägeblatt d=125mm, Bohrung=20mm, Breite: 3,2mm, Z=24 WZ 1 DIA-Fräser, rechts - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1 1 DIA-Fräser, links - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1 1 VHW-Schlichtfräser, rechts, D=10mm Klappbare Rollenbahn im Ein.- und Auslauf Automatische Zentralschmierung (Technische Angaben laut Hersteller - ohne Gewähr!)
            axis stroke (X,Y,Z) unbegrenzt, 1000, 60 mm
            Number of spindle head vertical 10 St.
            Number of spindles head horizont. 6 St.
            milling motor 4,5 kW
            Description :
            CNC-Bearbeitungszentrum zum HAMMER-PREIS!

            MASTERWOOD TF 100 2.0 Partnership Edition

            Ausstattung:
            --------------------------------------
            - Bohrkopf mit 16 Bohrern für 5-seitige Bearbeitung
            - Nutsägeaggregat
            - Fräsaggregat mit 6-fach-Werkzeugwechsler
            - inkl. Nutsägeblatt, 2 Diamantfräser, 1 WPL-Schlichtfräser
            - Vorrüstung für CLAMEX- und Türenpaket
            - 2 klappbare Rollenbahnen
            - programmgesteuerte Zentralschmierung
            --------------------------------------

            AKTIONSPREIS 44.990,00 Euro (zzgl. MwSt.)ab Werk

            --------------------------------------

            Fracht, Aufstellung, Einweisung innerhalb Deutschland
            inklusive 8-stündiger Schulung individuell und vor Ort
            AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt., Preis bisher 2.582,00 Euro)


            Die Optionen der Partnership Edition:
            --------------------------------------

            Komplettpaket für CLAMEX Verbinder bestehend aus:
            --------------------------------------
            - Winkelgetriebe mit CLAMEX Fräser inkl.
            spezieller Aufnahme im Werkzeugwechsler und Softwareanpassung
            - Original Lamello Werkzeugpaket: 2x P-System Diamantfräser, Fräsdorn
            - Gutschein für 300 Paar CLAMEX P-14, 80 Paar TENSO P-14

            AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.)

            Tür-Komplettpaket bestehend aus:
            --------------------------------------
            - Winkelgetriebe mit Schlosskastenfräser, spezieller Aufnahme im
            - Werkzeugwechsler, Softwareanpassung inkl. Makro für Schlosskasten

            AKTIONSPREIS 3.500,00 Euro (zzgl. MwSt.)

            Softwarepaket PaletteCAD start + CAM Anbindung
            --------------------------------------
            Unsere Premium-Software mit perfekt abgestimmter CNC Schnittstelle – bei uns
            selbstverständliche bereits inklusive CLAMEX Makro.

            AKTIONSPREIS 3.000,00 Euro (zzgl. MwSt.)


            Aktionspreise gültig solange Vorrat reicht. Zwischenverkauf vorbehalten.


            Ausführliche Beschreibung:
            Das Masterwood CNC Bearbeitungszentrum PROJECT TF
            ist ideal für komplexe CNC Bearbeitung auf kleinstem Raum,
            sowohl für Massivholz, Plattenwerkstoffe oder sonstige
            Materialien.

            Vorteile:
            - Sehr geringer Platzbedarf
            - Höchste Zeitersparnis durch extrem schnelle Fertigungszeiten
            - Schnelle Amortisation durch geringen Anschaffungspreis
            - Schnelles Erlernen der Technik durch einfachste Bedienung
            - Sauberkeit der Werkstücke bei geringer Absaugleistung durch Bearbeitung
            von unten
            - Extrem schnelle, einfache und variable Programmierung mit der
            Software MASTERWORK (Standard)
            - Extrem schnelle und einfache Programmierung kompletter
            Schränke durch den Einsatz von TrunCAD (Option)

            Technische Daten:

            Achsen:
            X-Achse: Max. Werkstücklänge: unbegrenzt, Min. Werkstücklänge: 250mm
            Verfahr-Geschwindigkeit: 0-25 m/min.

            Y-Achse: Max. Werkstückbreite: 1.000mm für alle Aggregate
            Min. Werkstückbreite: 80mm
            Verfahr-Geschwindigkeit: 0-50 m/min.

            Z-Achse: Max. Werkstückstärke: 60mm
            Min. Werkstückstärke: 10mm
            Verfahr-Geschwindigkeit: 0-20 m/min.

            Die minimalen und maximalen Werkstückgrößen sind
            abhängig vom Gewicht und auch vom Verhältnis
            Länge zu Breite!

            Aggregate:
            16er Bohrkopf: vertikale Spindeln in X-Richtung: 5 Stück
            vertikale Spindeln in Y-Richtung: 5 Stück
            horizontale Doppelbohrspindel in X-Richtung: 2+2 Stück
            horizontale Doppelbohrspindel in Y-Richtung: 1+1 Stück
            Abstand Bohrspindeln: 32mm
            Drehzahl Bohrspindeln: 4.000 U/min.
            Motor: 1,7 kW
            Nutsäge: in X-Richtung
            Drehzahl: 4.000 U/min.
            Max. Sägeblattdurchmesser: 125mm
            Motor: 1,7 kW (Die Nutsäge ist im Bohrkopf integriert)

            Steuerung:
            Personal Computer HP Compaq 6000 Pro SFF PC
            Prozessor: Intel Celeron E3300 @ 2.50GHZ
            RAM: 1 GB
            Hard Disk: 300 GB
            CD-ROM Laufwerk
            Farbbildschirm 17’’ LCD
            Videokarte integriert 512 MB
            2 Ethernet Karten
            Schnittstellen: 2 Serielle RS 232 - 1 Parallele - 10 USB -
            1 ESATA
            Tastatur: Eingang PS 2
            Mouse: Eingang PS 2
            Betriebssystem: Windows 7 professional
            Programm: MASTERWORK-MASCHINEN-VERSION

            Weitere Daten:
            Benötigter Luftdruck: 8 bar
            Luftverbrauch: nax. 750 l/min.
            Absaugung:
            Volumen: 2.000 m³/h
            Luftgeschwindigkeit: 25 - 30 m/sec.
            Absaugstutzen: 1 x 150mm

            Weitere Ausstattungsmerkmale:
            - Lufttische am Arbeitsbereich
            - Rollentisch im Ein- und Auslauf
            - Sensor für Plattenvermessung
            - Kugelumlaufspindel- und Linear-Führungen
            - Zahnstangenantrieb
            - Zentralschmierung
            - Import von DXF Dateien

            "PARTNERSHIP EDITION" bestehend aus:

            Fräsaggregat,
            einschl. MASTERWORK Softwareerweiterung
            Drehzahl: 1.000 bis 18.000 U/min.
            Motor: 4,5 kW mit ISO 30 Aufnahme
            Einschl. integrierte Absaugsteuerung (Beim Bohren
            wird nur der Bohrkopf, beim Fräsen nur das Fräsaggregat
            abgesaugt)

            6-fach Werkzeugwechsler

            3 ISO 30 Kegel einschl. Spannzange

            Werkzeugbestückung, bestehend aus: HW Dübelbohrer:
            5 Stück 5mm – GL 70mm - Sacklochbohrer
            1 Stück 5mm – GL 70mm - Durchgangsbohrer
            4 Stück 8mm – GL 57,5mm - Sacklochbohrer
            2 Stück 10mm – GL 57,5mm – Sacklochbohrer
            1 Stück 10mm – GL 70mm – Sacklochbohrer
            1 Stück 8mm – GL 70mm - Sacklochbohrer
            1 Stück 15mm – GL 70mm - Sacklochbohrer
            1 Stück 35mm – GL 70mm - Sacklochbohrer
            1 HW Nutsägeblatt d=125mm, Bohrung=20mm, Breite: 3,2mm, Z=24 WZ
            1 DIA-Fräser, rechts - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1
            1 DIA-Fräser, links - GL=103mm, NL=43mm, D=18mm, Schaft: 20x50mm, Z 1+1
            1 VHW-Schlichtfräser, rechts, D=10mm

            Klappbare Rollenbahn im Ein.- und Auslauf

            Automatische Zentralschmierung

            (Technische Angaben laut Hersteller - ohne Gewähr!)
          Datasheet
          Request / Contact

          Belt and profile sanding machine

          used  Belt and profile sanding machine LÖWER Holzbauschleifmaschine HBS 400


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5704 · Belt and profile sanding machine

          LÖWER - Holzbauschleifmaschine HBS 400 - - neu -

          Technical details
          Number of sanding units 1 St.︱Profile width 390 mm︱Profile height max. 390 mm︱
            Number of sanding units 1 St.
            Profile width 390 mm
            Profile height max. 390 mm
          Datasheet
          Request / Contact

          Sanding machines for edge

          used  Sanding machines for edge REHNEN R 1


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6210 · Sanding machines for edge

          REHNEN - R 1 - - neu -

          Technical details
          Oscillation ja ja / nein︱ ja ja/nein︱ ja ja/nein︱tiltable up to 45/90 Grad︱Motor output 3 kW︱Table dimensions 750x350 mm︱sanding width 150 mm︱Weight 200 kg︱
            Oscillation ja ja / nein
            ja ja/nein
            ja ja/nein
            tiltable up to 45/90 Grad
            Motor output 3 kW
            Table dimensions 750x350 mm
            sanding width 150 mm
            Weight 200 kg
          Datasheet
          Request / Contact

          Wide belt sander

          used  Wide belt sander VIET S 1 213 RS


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-6354 · Wide belt sander

          VIET - S 1 213 RS - - neu -

          Technical details
          Working width 1350 mm︱Number of sanding units 2 St.︱Workpiece thickness max. 3 - 160 mm︱sanding belt measurements 2200 x 1350 mm︱main drive 18,5 kW︱
            Working width 1350 mm
            Number of sanding units 2 St.
            Workpiece thickness max. 3 - 160 mm
            sanding belt measurements 2200 x 1350 mm
            main drive 18,5 kW
          Datasheet
          Request / Contact

          Carcase clamp

          used  Carcase clamp HOMAG Cabteq S-200


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5325 · Carcase clamp

          HOMAG - Cabteq S-200 - - neu -

          Technical details
          Dimensions (L/W/H) 4000,750,2300 mm︱vertical cylinders 1 St.︱Horizontal cylinders 1 St.︱
            Dimensions (L/W/H) 4000,750,2300 mm
            vertical cylinders 1 St.
            Horizontal cylinders 1 St.
          Datasheet
          Request / Contact

          Glue spreader

          used  Glue spreader TRIMWEX GA-DT-300-V1.5-D1.5


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5207 · Glue spreader

          TRIMWEX - GA-DT-300-V1.5-D1.5 - - neu -

          Technical details
          Working width 300 mm︱Number of rollers 2 St.︱Feed speed 20 m/min.︱weight 300 kg︱Dimensions (L/W/H) 4000x600x1500 mm︱
            Working width 300 mm
            Number of rollers 2 St.
            Feed speed 20 m/min.
            weight 300 kg
            Dimensions (L/W/H) 4000x600x1500 mm
          Datasheet
          Request / Contact
          used  Glue spreader GMC Leimbehaelter mit Spachtel


          • Gebr. Engelfried oHG
          • Elisabethenstr. 41
          • 73432 Aalen
          • Deutschland

          • (0049)07361-98660
            (0049)07361-8431
          • info@engelfried.com
            www.engelfried.com
          #1305-5929 · Glue spreader

          GMC - Leimbehaelter mit Spachtel - - neu -

          Technical details
          Working width 50 ︱Number of rollers 1 ︱Feed speed ,
          10 kg Leimbehälter gebrauchsfertig. Zubehör: 1 Pistole, Rohr 4 m lang. 1 Rollenspachtel Breite 50 mm und 7 mm Rollendurchmesser für Leimauftrag innen und außen (technische Daten lt. Hersteller - ohne Gewähr !)
            Working width 50
            Number of rollers 1
            Feed speed ,
            Description :
            10 kg Leimbehälter gebrauchsfertig.
            Zubehör: 1 Pistole, Rohr 4 m lang.
            1 Rollenspachtel Breite 50 mm und 7 mm Rollendurchmesser für Leimauftrag innen und außen

            (technische Daten lt. Hersteller - ohne Gewähr !)
          Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          • 4
          • 5
          • 6
          •
          •

            Profilo del commerciante: Gebr. Engelfried oHG

          Contatta Trader



            Gebr angelo fritto oHG
           Elisabethenstr. 41
            73432 - Alen
            Germania
            (0049)07361-98660">(0049)07361-98660
            (0049) 07361-8431
            info@engelfried.com
            www.engelfried.com

          Profilo di Trader

          Società Gebrüder Engelfried oHG
          Elisabethenstrasse 41
          73432 Aalen-Unterkochen
          Germania
           Tel. + 49 (7361) 9866-0 Werner e Florian Engelfried
           Tel. + 49 (7361) 9866-0 Florian Engelfried
           kom. 0602392773 Marian Grzeszkiewicz
           Teel.: + 49 (7361) 9866-19 Кирилл Суппес

          Fax.: + 49 (7361) 8431
          (At) engelfried.com

          Esposizione e magazzino:
          zona industriale
          Kapellenweg 25
          73447 Oberkochen
          Germania
          Tel. + 49 (7364) 919323




          Gebr. Engelfried oHG   73432 - Aalen Elisabethenstr. 41 Deutschland
          Gebr. Engelfried oHG

          Elisabethenstr. 41



          Contact Trader


            Gebr. Engelfried oHG
           Elisabethenstr. 41
            73432 - Aalen
            Deutschland
            (0049)07361-98660
            (0049)07361-8431
            info@engelfried.com
            www.engelfried.com
            Contact person:







          Machine category


          Abrichthobelmaschine · Band- und Profilschleifmaschine · Bandsäge · Beschlagcenter · Bohr- und Dübeleintreibmaschine · Breitbandschleifmaschine · Bündigfräsmaschine · CNC-Bearbeitungszentrum · CNC-Bearbeitungszentrum Fenster u. Türen · Dickenhobelmaschine · Doppelgehrungssäge · Dreh- und Kipptisch · Ecklager- und Olivenbohrmaschine · Entstauber · Fein- und Hydrohobelmaschine · Fensteranlage · Fensterlackieranlage · Fensterwerkzeuge · Formatkreissäge · Fräsmaschine · Furnierpresse · Füge- und Feinschnittmaschine · Gehrungsstanze · Glasleistensäge · Kantenschleifmaschine · Kapp- und Gehrungssäge · Keilzinkenanlage · Klammergeräte · Kombinierte Abricht- und Dickenhobelmasc · Kompressor · Korpuspresse · Kreuzsprossenfräse · Lamellierpresse · Leimauftragsmaschine · Längskreissäge · Längsschnittkreissäge · Minizinkenpresse · Montagestation · Optimierungskappsäge · Rahmen- und Langlochbohrmaschine · Rahmenpresse · Rollenbahn · Rundbogenfräsgeräte · Schleifmaschine · Schwenkfräsmaschine · Transportanlage · Transportwagen · Umfälzautomat · Universal-Dübellochbohrmaschine · Untertischkappsäge · Verglasungs- und Kontrollpresse · Verleimstern · Vierseitenhobelmaschine · Vorschubapparate · Werkzeug-Reinigungsgeräte · Zapfenschneid- und Schlitzmaschine · Zerspanen ·
