Machining Center - Horizontal

Machinelist: Machining Center - Horizontal

Machining Center - Horizontal

Matthias Ehlers Werkzeugmaschinen
Nikolaus-Otto-Straße 19 + 21
22946 Trittau
Deutschland

+49 (0)4154 - 986 99 12
+49 (0)4154 - 986 99 14
anfrage@ehlers-wzm.de
www.ehlers-wzm.de

#2033-2022050 · Machining Center - Horizontal

DMG - NHX 6300 - - 2021 - Siemens S840D sl

Technical details

x-travel 1050 mm︱y-travel 900 mm︱z-travel 1030 mm︱Control Siemens S840D sl ︱main spindle: ︱number of spindles 1 Stück︱max. turning speeds 12.000 min/-1︱drive capacity - main spindle 90/50 kW︱table: ︱no. of tables 2 ︱table surface area 630 x 630 mm︱max. workpiece dimensions Durchm. 1050 x H 1300 ︱max. workpiece weight 1500 kg︱tool magazin: ︱number of tool places 60 Pos.︱tool taper HSK100A ︱feeds: ︱rapid traverse ( x / y / z ) 60/60/60 m/min︱Acceleration (x/y/z) 0,64/0,93/0,70 G︱Number of working hours ca. 3260 h︱

In our opinion, the machine is in a new condition condition and can be inspected under power by appointment. Commissioning: December 2020 / January 2021 The machine will be available from around June 2023, or earlier by arrangement. Technical features: - IKZ - Closed control loop with integrated position measuring system - Celos with Siemens, ERGOline Control - Simultaneous 4-axis machining - Workpiece / fixture measurement (Fanuc) - Tool breakage control system in the tool magazine Accesories: - chip conveyor - Probe, Renishaw OMP 60 Miscellaneous: - Minimum pallet indexing angle 0.001 degrees - A 3D data model software for programming systems can also be purchased will ***Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information.*** ***Changes and errors in the technical data and information as well as Subject to prior sale!***

x-travel 1050 mm

y-travel 900 mm

z-travel 1030 mm

Control Siemens S840D sl

number of spindles 1 Stück

max. turning speeds 12.000 min/-1

drive capacity - main spindle 90/50 kW

no. of tables 2

table surface area 630 x 630 mm

max. workpiece dimensions Durchm. 1050 x H 1300

max. workpiece weight 1500 kg

number of tool places 60 Pos.

tool taper HSK100A

rapid traverse ( x / y / z ) 60/60/60 m/min

Acceleration (x/y/z) 0,64/0,93/0,70 G

Number of working hours ca. 3260 h

Description :

In our opinion, the machine is in a new condition
condition and can be inspected under power by appointment.

Commissioning: December 2020 / January 2021
The machine will be available from around June 2023, or earlier by arrangement.

Technical features:
- IKZ
- Closed control loop with integrated position measuring system
- Celos with Siemens, ERGOline Control
- Simultaneous 4-axis machining
- Workpiece / fixture measurement (Fanuc)
- Tool breakage control system in the tool magazine

Accesories:
- chip conveyor
- Probe, Renishaw OMP 60

Miscellaneous:
- Minimum pallet indexing angle 0.001 degrees
- A 3D data model software for programming systems can also be purchased
will

***Accessories, tools and clamping devices shown are only part of the scope of
delivery
if this is noted in the additional information.***

***Changes and errors in the technical data and information as well as
Subject to prior sale!***

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal Krauseco-Mauser PS MC

Markus Hirsch GmbH
Hüttenstrasse 1
46284 Dorsten
Deutschland

+49 2362 95035 12
+49 2362 95035 10
liersch@hirsch-maschinen.de
www.hirsch-maschinen.de

#1077-03583 · Machining Center - Horizontal

Krauseco-Mauser - PS MC - - 2017 - Siemens

Technical details

x-travel 700 mm︱y-travel 700 mm︱z-travel 700 mm︱Control Siemens ︱type 840Dsl ︱Number of spindles 2 St.︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

Doppelwendespanner Maschinennummer 0552.80.00 About usmore than 400 machines in the warehouse over 12000 m² storage area, crane capacity 70 tmore than 1000 items accessories for your workshopYou want to sell machines production lines or your company, then talk to us.

x-travel 700 mm

y-travel 700 mm

z-travel 700 mm

Control Siemens

type 840Dsl

Number of spindles 2 St.

Description :

Doppelwendespanner

Maschinennummer 0552.80.00

About usmore than 400 machines in the warehouse over 12000 m² storage area,
crane capacity 70 tmore than 1000 items accessories for your workshopYou want
to sell machines production lines or your company, then talk to us.

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal DOOSAN DAEWOO HM 1250

Kemmerich Werkzeugmaschinen
Im Rottfeld 1a
40789 Monheim am Rhein
Deutschland

+49 2173 207474
+49 2173 207473
info@kemmerich.biz
www.kemmerich.biz

#1020-19944 · Machining Center - Horizontal

DOOSAN DAEWOO - HM 1250 - - 2013 - Fanuc 31i-MB

Technical details

x-travel 2100 mm︱y-travel 1500 mm︱z-travel 1500 mm︱Number of pallets 2 ︱size of pallet 1250 x 1250 mm︱dimension of workpiece 2000 x 1425 (H) mm︱feeds 0,1 - 12000 mm/min︱rapid traverse 24000 mm/min︱spindle motor 26/22 kW︱spindle turning speed range 10 - 6000 U/min︱Tool magazine positions 60 fach︱tool taper ISO 50 ︱control Fanuc 31i-MB ︱workpiece weight 3000 kg︱total power requirement 69 KVA︱total wight 31 t︱dimensions of the machine ca. 10,5 x 5,8 x 4,1 m︱

Equipment : - CNC control FANUC 31i-MA 4-axis (X,Y,Z,B) - 2- pallets 1250 mm - internal spindle cooling, oil cooler - IKZ 20bar - tool changer 90-fold (BT 50) - chip conveyor - ball screw cooling - Glass scales Heidenhain - CE sign approx. 27000h Power On Hours, 12400h Cutting Time

x-travel 2100 mm

y-travel 1500 mm

z-travel 1500 mm

Number of pallets 2

size of pallet 1250 x 1250 mm

dimension of workpiece 2000 x 1425 (H) mm

feeds 0,1 - 12000 mm/min

rapid traverse 24000 mm/min

spindle motor 26/22 kW

spindle turning speed range 10 - 6000 U/min

Tool magazine positions 60 fach

tool taper ISO 50

control Fanuc 31i-MB

workpiece weight 3000 kg

total power requirement 69 KVA

total wight 31 t

dimensions of the machine ca. 10,5 x 5,8 x 4,1 m

Description :

Equipment :
- CNC control FANUC 31i-MA 4-axis (X,Y,Z,B)
- 2- pallets 1250 mm
- internal spindle cooling, oil cooler
- IKZ 20bar
- tool changer 90-fold (BT 50)
- chip conveyor
- ball screw cooling
- Glass scales Heidenhain
- CE sign

approx. 27000h Power On Hours, 12400h Cutting Time

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal DMG MORI NHX 5000

Stiens Werkzeugmaschinen GmbH
Mittelweg 92
59302 Oelde
Deutschland

+49 252283490
(0049) - 2522 - 8349-20
info@stiens.de
www.stiens.de

#1039-9105 · Machining Center - Horizontal

DMG MORI - NHX 5000 - - 2011 - M 730 BM MAPPS IV

Technical details

x-travel 730 mm︱y-travel 730 mm︱z-travel 880 mm︱control M 730 BM MAPPS IV︱Main spindle: ︱max. spindle speed 12.000 min/-1︱power capacity - milling spindle 15 / 11 kW︱max. Torque 102 Nm︱tool taper ISO 40 ︱distance spindle center to table 80 - 800 mm︱distance Spindlenose and center of table 70 - 950 mm︱pallet changer: ︱numbers of pallets 2 ︱size of pallet 500 x 500 mm︱max. workpiece weight 500 kg︱max. workpiecediameter 800 mm︱max. workpiece height 1.100 mm︱change time of pallets 9,5 sec︱Indexing-time 1,49 sec︱B-axis (table) 1 °︱

CNC - MachiningCenter Horizontal DMG MORI - NHX 5000 - 2 pos. palletchanger - WITHOUT tools

x-travel 730 mm

y-travel 730 mm

z-travel 880 mm

control M 730 BM MAPPS IV

max. spindle speed 12.000 min/-1

power capacity - milling spindle 15 / 11 kW

max. Torque 102 Nm

tool taper ISO 40

distance spindle center to table 80 - 800 mm

distance Spindlenose and center . 70 - 950 mm

numbers of pallets 2

size of pallet 500 x 500 mm

max. workpiece weight 500 kg

max. workpiecediameter 800 mm

max. workpiece height 1.100 mm

change time of pallets 9,5 sec

Indexing-time 1,49 sec

B-axis (table) 1 °

Description :

CNC - MachiningCenter Horizontal
DMG MORI - NHX 5000

- 2 pos. palletchanger
- WITHOUT tools

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal MITSUI SEIKI HU 63 A - 5X

Stiens Werkzeugmaschinen GmbH
Mittelweg 92
59302 Oelde
Deutschland

+49 252283490
(0049) - 2522 - 8349-20
info@stiens.de
www.stiens.de

#1039-9103 · Machining Center - Horizontal

MITSUI SEIKI - HU 63 A - 5X - - 2009 - 31iM-A5 Fanuc

Technical details

x-travel 900 mm︱y-travel 900 mm︱z-travel 900 mm︱control 31iM-A5 Fanuc︱Main spindle: ︱turning speed range - main spindle 120 - 12.000 min/-1︱power capacity - main spindel 30 / 25 kW︱Torque 420 Nm︱tool taper SK 50 ︱pallet changer: ︱numbers of pallets 2 ︱size of pallet 630 x 630 mm︱Tool-Presetter: ︱number of toolpositions 120 pos.︱feeds: ︱rapid traverse X: 12 m/min︱rapid traverse Y/Z: 24 m/min︱rapid traverse B: 3.600 º/min︱rapid traverse A: 2.160 º/min︱feed speeds X/Y/Z: 0,1 - 10.000 mm/min︱

Machining Center Horizontal MITSUI SEIKI - HU 63 A - 5X - 5 Axis - incl. 4x pallets and 1x clamping tower - incl. podium

x-travel 900 mm

y-travel 900 mm

z-travel 900 mm

control 31iM-A5 Fanuc

turning speed range - main spind. 120 - 12.000 min/-1

power capacity - main spindel 30 / 25 kW

Torque 420 Nm

tool taper SK 50

numbers of pallets 2

size of pallet 630 x 630 mm

number of toolpositions 120 pos.

rapid traverse X: 12 m/min

rapid traverse Y/Z: 24 m/min

rapid traverse B: 3.600 º/min

rapid traverse A: 2.160 º/min

feed speeds X/Y/Z: 0,1 - 10.000 mm/min

Description :

Machining Center Horizontal
MITSUI SEIKI - HU 63 A - 5X

- 5 Axis
- incl. 4x pallets and 1x clamping tower
- incl. podium

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal STARRAG HECKERT HEC 500 H/V Athletic

Leyendecker & Hollmann GmbH
Giesenheide 18
40724 Hilden
Deutschland

+49 (2103) 28097-0
+49 (2103) 28097-99
info@LHmachine.com
www.LHmachine.com

#1083-03214 · Machining Center - Horizontal

STARRAG HECKERT - HEC 500 H/V Athletic - - 2008 - Siemens 840D

Technical details

x-travel 900 mm︱y-travel 770 mm︱z-travel 1000 mm︱Control Siemens 840D ︱tool taper SK 50 ︱spindle turning speed range 20 - 6000 U/min︱power capacity at 60% load 30 kW︱max. torque on the spindle at 60% load 1080 Nm︱rapid travel x/y/z 60 m/min︱interference diameter 1150 mm︱weight of the machine ca. 21 t︱

Equipment / Accessories: - horizontal/vertical head - NC rotary table 360° - 2 times pallet changer 630 x 500 mm - max. load per pallet (centered) 1000 kg - tool magazine with 60 places - max. tool diameter with free adjacent places 325 mm - max. tool diameter with occupied adjacent places 125 mm - max. tool length 700 mm - max. tool weight 35 kg - electronic hand control panel - coolant device with paper band filter - internal coolant supply 80 bar - oil coolant - chip conveyor

x-travel 900 mm

y-travel 770 mm

z-travel 1000 mm

Control Siemens 840D

tool taper SK 50

spindle turning speed range 20 - 6000 U/min

power capacity at 60% load 30 kW

max. torque on the spindle at 60. 1080 Nm

rapid travel x/y/z 60 m/min

interference diameter 1150 mm

weight of the machine ca. 21 t

Description :

Equipment / Accessories:
- horizontal/vertical head
- NC rotary table 360°
- 2 times pallet changer 630 x 500 mm
- max. load per pallet (centered) 1000 kg
- tool magazine with 60 places
- max. tool diameter with free adjacent places 325 mm
- max. tool diameter with occupied adjacent places 125 mm
- max. tool length 700 mm
- max. tool weight 35 kg
- electronic hand control panel
- coolant device with paper band filter
- internal coolant supply 80 bar
- oil coolant
- chip conveyor

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal MCM ACTION 2600 FFS

Knops Werkzeugmaschinen
Konrad-Zuse-Straße 5
40789 Monheim
Deutschland

02173 - 39494-0
02173 - 39494-29
maschinen@knops.de
www.knops.de

#1022-E05884 · Machining Center - Horizontal

MCM - ACTION 2600 FFS - - 2008 - Fanuc 16 MB

Technical details

x-travel 2600 mm︱y-travel 1600 mm︱z-travel 1700 mm︱Control Fanuc 16 MB ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. 42 x 18 m︱

The system requires a space of approx. 42 x 18 m It is designed for "fully automatic operation" in 3 shifts. Components with tolerances of <0.01 mm were produced on the system. Equipment: CNC control Fanuc 16 MB 20-pos pallet changer Pallet size 1250 x 1000 mm Interference circle diameter up to 2700 mm Vertical tool magazine with 599 places HSK-A100 from 3 modules on 4 levels Rotary table (B-axis) with 3,600,000 angular positions Table load 4000 kg Spindle speeds 8,000 rpm. Motor power 26/37 kW Torque 605/707 Nm Chip disposal through two jet pipes in the existing central Chip disposal system Connection to an in-house central coolant system. IKZ spindle with supply of coolant through the center of the tool Cooling unit for working spindle use Electrical control cabinet with air conditioning Protective cover for the work area Protective fence cladding, sheet metal below and safety glass above, for the entire working area of ??the machine. Buffer shelf with 5 tool spaces for quick tool provision Tool cone cleaning High pressure coolant supply 65 bar Laser control of tool availability Inductive button for temperature compensation on the electrospindle Tool Monitor Renishaw button type RMP 60 Rotoclear AR aspirator Machine preparation for hydraulic clamping (on the turntable) Automation of the plant

x-travel 2600 mm

y-travel 1600 mm

z-travel 1700 mm

Control Fanuc 16 MB

dimensions of the machine ca. 42 x 18 m

Description :

The system requires a space of approx. 42 x 18 m
It is designed for "fully automatic operation" in 3 shifts.
Components with tolerances of <0.01 mm were produced on the system.

Equipment:
CNC control Fanuc 16 MB
20-pos pallet changer
Pallet size 1250 x 1000 mm
Interference circle diameter up to 2700 mm
Vertical tool magazine with 599 places HSK-A100
from 3 modules on 4 levels
Rotary table (B-axis) with 3,600,000 angular positions
Table load 4000 kg
Spindle speeds 8,000 rpm.
Motor power 26/37 kW
Torque 605/707 Nm
Chip disposal through two jet pipes in the existing central
Chip disposal system
Connection to an in-house central coolant system.
IKZ spindle with supply of coolant through the center of the tool
Cooling unit for working spindle use
Electrical control cabinet with air conditioning
Protective cover for the work area
Protective fence cladding, sheet metal below and safety glass above,
for the entire working area of ??the machine.
Buffer shelf with 5 tool spaces for quick tool provision
Tool cone cleaning
High pressure coolant supply 65 bar
Laser control of tool availability
Inductive button for temperature compensation on the electrospindle
Tool Monitor
Renishaw button type RMP 60
Rotoclear
AR aspirator
Machine preparation for hydraulic clamping (on the turntable)
Automation of the plant

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal MORI SEIKI NH 4000 DCG

FIMOTEC
20 RUE AMPERE
67500 HAGUENAU
Frankreich

+33 (0)388720247
+33 (0)388936066
FIMOTEC@WANADOO.FR
WWW.FIMOTEC.FR

#1105-03770 · Machining Center - Horizontal

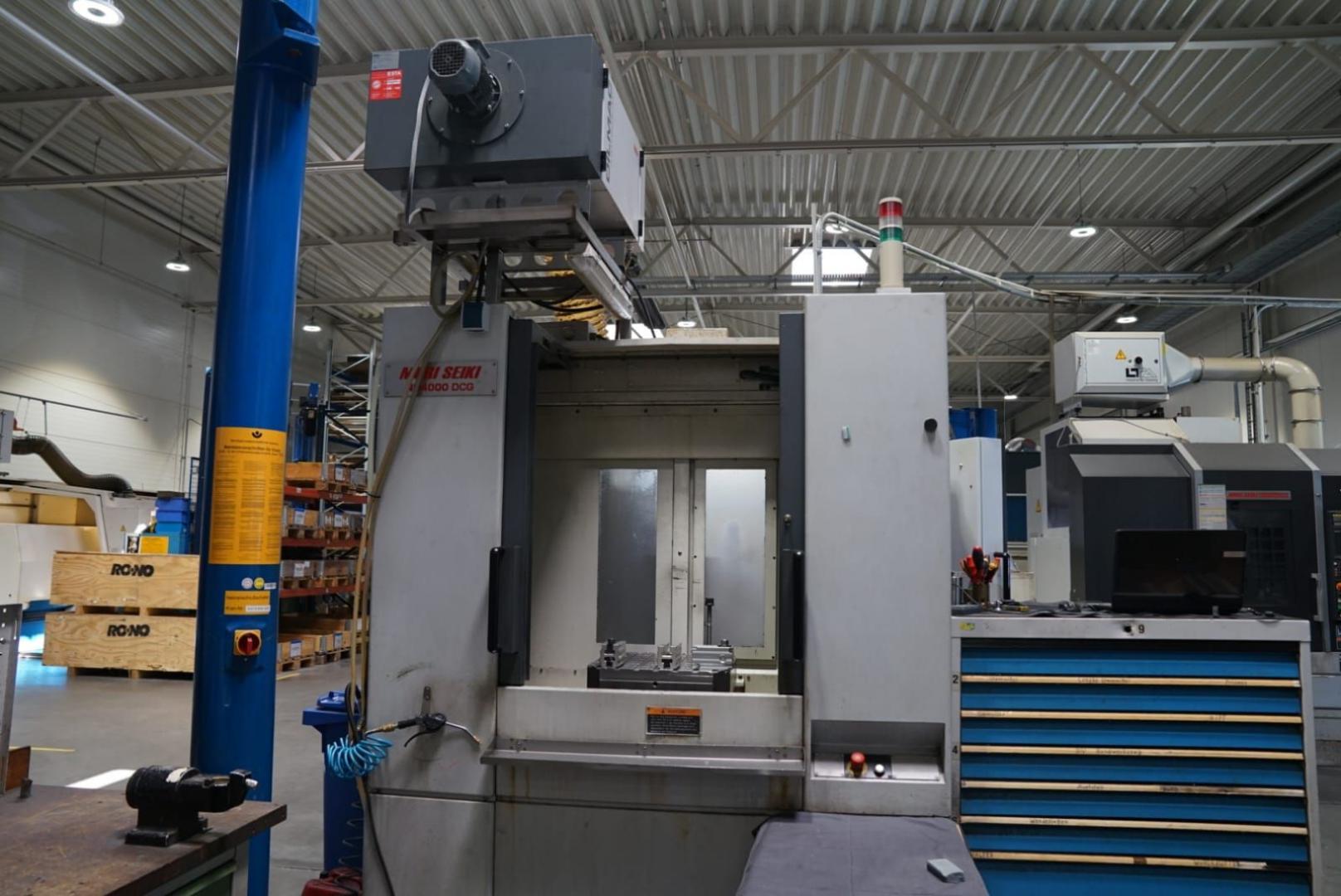

MORI SEIKI - NH 4000 DCG - - 2007 - MSX 701 III

Technical details

x-travel 560 mm︱y-travel 560 mm︱z-travel 630 mm︱control MSX 701 III ︱power capacity - milling spindle 22 / 18,5 kW︱spindle turning speed - stepless 14.000 1/min︱numbers of tools in magazin 60 BT 40 ︱size of pallet 400 x 400 mm︱max. workpiece diameter on pallets 580 mm︱workpiece height max. 650 mm︱B-axis (table) 1 ° ︱feeds x/y/z -stepless 20.000 mm/min︱rapid travel x/y/z 50.000 mm/min︱total power requirement 54 kVA︱weight of the machine ca. 9.9 t︱dimensions of the machine ca. 2,9 x 3,9 x 2,6 m︱Chip conveyor ︱

BRAND NEW SPINDEL IN 2022 2- pallet 400 X 400 360° POSITION machining center with 50 bar coolant through spindle.

x-travel 560 mm

y-travel 560 mm

z-travel 630 mm

control MSX 701 III

power capacity - milling spindle 22 / 18,5 kW

spindle turning speed - stepless 14.000 1/min

numbers of tools in magazin 60 BT 40

size of pallet 400 x 400 mm

max. workpiece diameter on palle. 580 mm

workpiece height max. 650 mm

B-axis (table) 1 °

feeds x/y/z -stepless 20.000 mm/min

rapid travel x/y/z 50.000 mm/min

total power requirement 54 kVA

weight of the machine ca. 9.9 t

dimensions of the machine ca. 2,9 x 3,9 x 2,6 m

Description :

BRAND NEW SPINDEL IN 2022
2- pallet 400 X 400 360° POSITION
machining center with 50 bar coolant through spindle.

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal HÜLLER-HILLE BLUESTAR 5

Amann Werkzeugmaschinen GmbH
Landshuter Straße 1
85716 Unterschleißheim
Deutschland

(0049) 89 317754 0
(0049) 89 3174262
info@amann-wzm.de
www.amann-wzm.de

#1006-17832 · Machining Center - Horizontal

HÜLLER-HILLE - BLUESTAR 5 - - 2005 - SIN 840 D SIEMENS

Technical details

x-travel 700 mm︱y-travel 630 mm︱z-travel 700 mm︱Control SIN 840 D SIEMENS︱spindle turning speed - stepless 10.000 U/min︱power capacity at 100 % load 13,00 kW︱feeding force at 40 % ED 18,00 KW︱tool taper HSK-A63 ︱spindle diameter in front bearing 80 mm︱feed X/Y/Z/-axis 1 - 50.000 mm/min︱rapid traverse X/Y/Z 50,00 m/min︱feed capacity X/Y/Z 5,00 kN︱B - axis 360 x 1 °︱B-axis 30,00 U/min︱size of pallet 2x 500 x 500 mm︱workpiece weight 500 kg︱0 700 x 700 x 750 mm︱ tool magacine with 40 Plätzen︱tool length - max. 350 mm︱tool diameter 80 mm︱

Horizontal machining center with SIEMENS SIN840D (PCU50); chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

x-travel 700 mm

y-travel 630 mm

z-travel 700 mm

Control SIN 840 D SIEMENS

spindle turning speed - stepless 10.000 U/min

power capacity at 100 % load 13,00 kW

feeding force at 40 % ED 18,00 KW

tool taper HSK-A63

spindle diameter in front bearin. 80 mm

feed X/Y/Z/-axis 1 - 50.000 mm/min

rapid traverse X/Y/Z 50,00 m/min

feed capacity X/Y/Z 5,00 kN

B - axis 360 x 1 °

B-axis 30,00 U/min

size of pallet 2x 500 x 500 mm

workpiece weight 500 kg

0 700 x 700 x 750 mm

tool magacine with 40 Plätzen

tool length - max. 350 mm

tool diameter 80 mm

Description :

Horizontal machining center with SIEMENS SIN840D (PCU50);
chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

Datasheet

Amann Werkzeugmaschinen GmbH
Landshuter Straße 1
85716 Unterschleißheim
Deutschland

(0049) 89 317754 0
(0049) 89 3174262
info@amann-wzm.de
www.amann-wzm.de

#1006-17833 · Machining Center - Horizontal

HÜLLER-HILLE - BLUESTAR 5 - - 2005 - SIN 840 D SIEMENS

Technical details

Horizontal machining center with SIEMENS SIN840D (PCU50); chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

x-travel 700 mm

y-travel 630 mm

z-travel 700 mm

Control SIN 840 D SIEMENS

spindle turning speed - stepless 10.000 U/min

power capacity at 100 % load 13,00 kW

feeding force at 40 % ED 18,00 KW

tool taper HSK-A63

spindle diameter in front bearin. 80 mm

feed X/Y/Z/-axis 1 - 50.000 mm/min

rapid traverse X/Y/Z 50,00 m/min

feed capacity X/Y/Z 5,00 kN

B - axis 360 x 1 °

B-axis 30,00 U/min

size of pallet 2x 500 x 500 mm

workpiece weight 500 kg

0 700 x 700 x 750 mm

tool magacine with 40 Plätzen

tool length - max. 350 mm

tool diameter 80 mm

Description :

Horizontal machining center with SIEMENS SIN840D (PCU50);
chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal MORI SEIKI NH 5000-40

Emuk Maschinenhandel GmbH
Siemensstrasse 24
76316 Malsch
Deutschland

+49 (0) 7246 943161
info@emuk.info
www.emuk.info

#2070-E23009 · Machining Center - Horizontal

MORI SEIKI - NH 5000-40 - - 2005 - MSX 501

Technical details

x-travel 630 mm︱y-travel 600 mm︱z-travel 670 mm︱Control MSX 501 ︱spindle turning speed - stepless 14000 U/min︱tool taper BT 40 ︱pallet chang. with pallet turn. 360x1 degree 2 ︱max. workpiece weight 500 kg︱tool change unit 60 fach ︱table-size 500 x 500 mm︱total power requirement 56 kW︱weight of the machine ca. 11,8 t︱dimensions of the machine ca. 5,8 x 3,6 x 3,0 m︱

x-travel 630 mm

y-travel 600 mm

z-travel 670 mm

Control MSX 501

spindle turning speed - stepless 14000 U/min

tool taper BT 40

pallet chang. with pallet turn. . 2

max. workpiece weight 500 kg

tool change unit 60 fach

table-size 500 x 500 mm

total power requirement 56 kW

weight of the machine ca. 11,8 t

dimensions of the machine ca. 5,8 x 3,6 x 3,0 m

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal Krauseco-Mauser FS 630-5

Markus Hirsch GmbH
Hüttenstrasse 1
46284 Dorsten
Deutschland

+49 2362 95035 12
+49 2362 95035 10
liersch@hirsch-maschinen.de
www.hirsch-maschinen.de

#1077-03584 · Machining Center - Horizontal

Krauseco-Mauser - FS 630-5 - - 2004 - Siemens

Technical details

x-travel 800 mm︱y-travel 630 mm︱z-travel 710 mm︱Control Siemens ︱type 840Dsl ︱Number of spindles 2 St.︱turning speeds 30-12000 U/min︱tool taper HSK 63 ︱Tool changer 80 Pos.︱Feed 1-40.000 mm/min︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

Doppelwendespanner Maschinennummer 0552.80.00

x-travel 800 mm

y-travel 630 mm

z-travel 710 mm

Control Siemens

type 840Dsl

Number of spindles 2 St.

turning speeds 30-12000 U/min

tool taper HSK 63

Tool changer 80 Pos.

Feed 1-40.000 mm/min

Description :

Doppelwendespanner

Maschinennummer 0552.80.00

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal HÜLLER – HILLE (MAG) NBH 135 Speed

IMZ Maschinen Vertriebs GmbH
Marie-Curie-Straße 19
73529 Schwäbisch Gmünd
Deutschland

0049 (0) 7171 987130
0049 (0) 7171 9871329
info@imz.de
www.imz.de

#1075-7019 · Machining Center - Horizontal

HÜLLER – HILLE (MAG) - NBH 135 Speed - - 2004 - Sinumerik 840 D

Technical details

x-travel 800 mm︱y-travel 800 mm︱z-travel 800 mm︱Control Sinumerik 840 D︱b-axis 360 °︱turning speeds 16.000 U/min︱rapid traverse 60 m/min︱tool taper HSK 63 ︱tool magazin: 144 Plätze︱total power requirement ︱weight of the machine ca. 17 t︱dimensions of the machine ca. 7,4 x 3,35 x 3,7 m︱

Pallet changing device: 180 ° NC rotary table Set-up station Full-space enclosure with workspace rinsing and manual rinsing gun Coolant system with IKZ Coolant pump 20-70 bar Coil suction filter 50mü Double chamber filter 60mü for internal coolant supply incl. prewarning Chip conveyor in scraper belt design Renishaw measuring system with probe Tool breakage control parallel to machining time (mech. probe) in tool magazine Incl. fixtures / clamping angle

x-travel 800 mm

y-travel 800 mm

z-travel 800 mm

Control Sinumerik 840 D

b-axis 360 °

turning speeds 16.000 U/min

rapid traverse 60 m/min

tool taper HSK 63

tool magazin: 144 Plätze

weight of the machine ca. 17 t

dimensions of the machine ca. 7,4 x 3,35 x 3,7 m

Description :

Pallet changing device: 180 °
NC rotary table
Set-up station
Full-space enclosure with workspace rinsing and manual rinsing gun
Coolant system with IKZ
Coolant pump 20-70 bar
Coil suction filter 50mü
Double chamber filter 60mü for internal coolant supply incl. prewarning
Chip conveyor in scraper belt design
Renishaw measuring system with probe
Tool breakage control parallel to machining time (mech. probe) in tool magazine
Incl. fixtures / clamping angle

Datasheet

MAMACH Machinenhandel BV
Campagneweg 10
4761 RM Zevenbergen
Niederlande

+31 (0)168325354
info@mamach.nl
www.mamach.nl

#2041-2749 · Machining Center - Horizontal

MORI SEIKI - NH 4000 DCG - - 2004 - MSG 501 Mapps II

Technical details

Control MSG 501 Mapps II ︱Pallet table size 400 x 400 mm︱Number of pallets 2 x︱Table load 400 kg︱Movement X-axis 560 mm︱Movement Y-axis 560 mm︱Movement Z-axis 630 mm︱Table indexing 0,001 °︱Spindle taper MAS BT 40 ︱Spindle Speed 14000 1/min︱Spindle motor 18,5 / 11 / 7,5 kW︱Magazin capacity 40 ︱Required floor space mm︱Length 3755 mm︱Width 2300 mm︱Height 2610 mm︱Weight 9600 kg︱

Control MSG 501 Mapps II

Pallet table size 400 x 400 mm

Number of pallets 2 x

Table load 400 kg

Movement X-axis 560 mm

Movement Y-axis 560 mm

Movement Z-axis 630 mm

Table indexing 0,001 °

Spindle taper MAS BT 40

Spindle Speed 14000 1/min

Spindle motor 18,5 / 11 / 7,5 kW

Magazin capacity 40

Length 3755 mm

Width 2300 mm

Height 2610 mm

Weight 9600 kg

Description :

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal PEGARD Precivit 2 BC TRT 1800

IVW GMBH
Niederrheinstr.298
40489 Düsseldorf
Deutschland

(0049)211-4184428
(0049)211-4184430
cd@ivwgmbh.com
www.ivwgmbh.com

#1088-E00898 · Machining Center - Horizontal

PEGARD - Precivit 2 BC TRT 1800 - - 2003 - Siemens 840 D

Technical details

x-travel 3500 mm︱y-travel 2500 mm︱z-travel 1000 mm︱Control Siemens 840 D ︱total power requirement 999 kW︱weight of the machine ca. 59 t︱dimensions of the machine ca. 6 x 5 x 7 m︱

x-travel 3500 mm

y-travel 2500 mm

z-travel 1000 mm

Control Siemens 840 D

total power requirement 999 kW

weight of the machine ca. 59 t

dimensions of the machine ca. 6 x 5 x 7 m

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal HÜLLER HILLE NBH 170

Amann Werkzeugmaschinen GmbH
Landshuter Straße 1
85716 Unterschleißheim
Deutschland

(0049) 89 317754 0
(0049) 89 3174262
info@amann-wzm.de
www.amann-wzm.de

#1006-17750 · Machining Center - Horizontal

HÜLLER HILLE - NBH 170 - - 2003 - SIN840D

Technical details

x-travel 1000 mm︱y-travel 800 mm︱z-travel 800 mm︱control SIN840D ︱speeds 10 - 10.000 U/min︱feed range 1 - 36000 mm/min︱B - axis 360 x 1 °︱surface area 2 x 500 x 630 mm︱repeating accuracy + / - 3 "︱tool diameter 100 mm︱workpiece length 650 mm︱workpiece weight max. 40 kg︱tool taper DIN 69871 SK 50 ︱workpiece weight 800 kg︱ tool magacine with 100 Plätzen︱wotkpiece diameter with 2 vacant positions 325 mm︱Chip to chip time ca. 8,00 sec.︱change time of pallets ca. 12,00 sec︱total power requirement 65,00 kW︱weight of the machine ca. 20,00 t︱

Horizontal machining center with SIEMENS SIN840D control. NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle Magazine with 2 cassette à 50 pockets.

x-travel 1000 mm

y-travel 800 mm

z-travel 800 mm

control SIN840D

speeds 10 - 10.000 U/min

feed range 1 - 36000 mm/min

B - axis 360 x 1 °

surface area 2 x 500 x 630 mm

repeating accuracy + / - 3 "

tool diameter 100 mm

workpiece length 650 mm

workpiece weight max. 40 kg

tool taper DIN 69871 SK 50

workpiece weight 800 kg

tool magacine with 100 Plätzen

wotkpiece diameter with 2 vacant. 325 mm

Chip to chip time ca. 8,00 sec.

change time of pallets ca. 12,00 sec

total power requirement 65,00 kW

weight of the machine ca. 20,00 t

Description :

Horizontal machining center with SIEMENS SIN840D control.
NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle
Magazine with 2 cassette à 50 pockets.

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal HELLER MC 16

HANS - JÜRGEN GEIGER
James-Watt-Str. 12
72555 Metzingen
Deutschland

(0049)-7123-18040
(0049)-7123-18384
geiger@geiger-germany.com
www.geiger-germany.com

#1049-678662 · Machining Center - Horizontal

HELLER - MC 16 - - 2002 -

Technical details

x-travel 630 mm︱y-travel 630 mm︱z-travel 630 mm︱total power requirement 30 kW︱weight of the machine ca. 12500 kg︱dimensions of the machine ca. m︱

x-travel 630 mm

y-travel 630 mm

z-travel 630 mm

total power requirement 30 kW

weight of the machine ca. 12500 kg

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal DECKEL-MAHO DMC 60 U Hi-Dyn

Christoph Busch GmbH
Dieselstr. 22
41352 Korschenbroich
Deutschland

+49 (0) 2182 570 5930
+49 (0) 2182 5785202
mail@busch-gruppe.de
www.busch-gruppe.de

#2052-04732 · Machining Center - Horizontal

DECKEL-MAHO - DMC 60 U Hi-Dyn - - 2002 - Heidenhain TNC 430

Technical details

DMC 60 U Hi-Dyn ︱control Heidenhain TNC 430 ︱x-travel 600 mm︱y-travel 700 mm︱z-travel 600 mm︱ Form AD ︱turning speeds 0 - 18.000 U/min︱︱ 630x500mit Palettenträger mm︱pallet changing 2-fach ︱pallet size: 2 x 630 x 500 mm︱ SK40 ︱tool change unit 60 Plätze︱ Heidenhain TT 130 ︱︱︱coolant ︱ 40 bar︱chip conveyor kW︱︱

DMC 60 U Hi-Dyn

control Heidenhain TNC 430

x-travel 600 mm

y-travel 700 mm

z-travel 600 mm

Form AD

turning speeds 0 - 18.000 U/min

630x500mit Palettenträger mm

pallet changing 2-fach

pallet size: 2 x 630 x 500 mm

SK40

tool change unit 60 Plätze

Heidenhain TT 130

40 bar

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal OKUMA MA50HB

Amann Werkzeugmaschinen GmbH
Landshuter Straße 1
85716 Unterschleißheim
Deutschland

(0049) 89 317754 0
(0049) 89 3174262
info@amann-wzm.de
www.amann-wzm.de

#1006-17919 · Machining Center - Horizontal

OKUMA - MA50HB - - 2001 - OKUMA OSP U-100M

Technical details

x-travel 700 mm︱y-travel 800 mm︱z-travel 700 mm︱control OKUMA OSP U-100M ︱B-axis 360 x 1 °︱feed X/Y/Z-axis 0 - 30.000 mm/min︱rapid traverse X/Y/Z 30,00 m/min︱size of pallet 500x500 mm︱numbers of pallets 2 ︱workpiece weight max. 800 kg︱workpiece size max. Ø800 x H900 mm︱spindle turning speed - stepless 50 - 10.000 U/min︱spindle drive 30 / 26 kW︱max. torque on the spindle 266 ︱spindle diameter in front bearing 110 mm︱tool taper HSK-A100 ︱toolpiece magazine: chain magazine 60 Stück︱tool diameter 140 mm︱tool diameter with 2 vacant positions 240 mm︱tool length - max. 450 mm︱

Horizontal machining center with OKUMA OSP U-100M control; electron. hand wheel; pallet changer; coolant system

x-travel 700 mm

y-travel 800 mm

z-travel 700 mm

control OKUMA OSP U-100M

B-axis 360 x 1 °

feed X/Y/Z-axis 0 - 30.000 mm/min

rapid traverse X/Y/Z 30,00 m/min

size of pallet 500x500 mm

numbers of pallets 2

workpiece weight max. 800 kg

workpiece size max. Ø800 x H900 mm

spindle turning speed - stepless 50 - 10.000 U/min

spindle drive 30 / 26 kW

max. torque on the spindle 266

spindle diameter in front bearin. 110 mm

tool taper HSK-A100

toolpiece magazine: chain magazi. 60 Stück

tool diameter 140 mm

tool diameter with 2 vacant posi. 240 mm

tool length - max. 450 mm

Description :

Horizontal machining center with OKUMA OSP U-100M control;
electron. hand wheel; pallet changer; coolant system

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal DMG DMC 60 H

Markus Hirsch GmbH
Hüttenstrasse 1
46284 Dorsten
Deutschland

+49 2362 95035 12
+49 2362 95035 10
liersch@hirsch-maschinen.de
www.hirsch-maschinen.de

#1077-03261 · Machining Center - Horizontal

DMG - DMC 60 H - - 2001 - Siemens

Technical details

x-travel 600 mm︱y-travel 560 mm︱z-travel 560 mm︱table surface area 500x400 mm︱control Siemens ︱type 840 D ︱spindle taper ISO 40 ︱spindle turning speed range 8000 U/min︱︱type of pallet-changer 2 ︱Rotary table 360 °︱Cooling through the spindle bar︱Tool changer 40 ︱chip conveyor ︱total power requirement kW︱weight of the machine ca. 11,5 t︱dimensions of the machine ca. m︱

x-travel 600 mm

y-travel 560 mm

z-travel 560 mm

table surface area 500x400 mm

control Siemens

type 840 D

spindle taper ISO 40

spindle turning speed range 8000 U/min

type of pallet-changer 2

Rotary table 360 °

Tool changer 40

weight of the machine ca. 11,5 t

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal STARRAG HECKERT CWK 400 Dynamic

Amann Werkzeugmaschinen GmbH
Landshuter Straße 1
85716 Unterschleißheim
Deutschland

(0049) 89 317754 0
(0049) 89 3174262
info@amann-wzm.de
www.amann-wzm.de

#1006-17636 · Machining Center - Horizontal

STARRAG HECKERT - CWK 400 Dynamic - - 2001 - SIN840D

Technical details

x-travel 650 mm︱y-travel 650 mm︱z-travel 650 mm︱Control SIN840D ︱size of pallet 500 x 400 mm︱table load capacity 500 kg︱B - axis 360 x 0,001 °︱spindle turning speed range 50 - 10.000 U/min︱power capacity at 100 % load 37,00 kW︱feeding force at 40 % ED 24,00 KW︱feeds x/y/z 1 - 40.000 mm/min︱rapid traverse X/Y/Z 40,00 m/min︱spindle diameter in front bearing mm︱tool taper DIN 69893 SK40 DIN69871︱ tool magacine with 240 Plätzen︱tool diameter 80 mm︱workpiece diameter at two free places aside 160 mm︱tool length - max. 350 mm︱weight of tools max. 10,00 kg︱total power requirement 60 kW︱

Horizontal 4-axis machining center with control SIEMENS SIN840 D, tower magazine with 240 places (4 towers), 6-fold pallet changer, coolant through the spindle, coolant filter, chip conveyor. Replacement milling spindle available (unused)

x-travel 650 mm

y-travel 650 mm

z-travel 650 mm

Control SIN840D

size of pallet 500 x 400 mm

table load capacity 500 kg

B - axis 360 x 0,001 °

spindle turning speed range 50 - 10.000 U/min

power capacity at 100 % load 37,00 kW

feeding force at 40 % ED 24,00 KW

feeds x/y/z 1 - 40.000 mm/min

rapid traverse X/Y/Z 40,00 m/min

tool taper DIN 69893 SK40 DIN69871

tool magacine with 240 Plätzen

tool diameter 80 mm

workpiece diameter at two free p. 160 mm

tool length - max. 350 mm

weight of tools max. 10,00 kg

total power requirement 60 kW

Description :

Horizontal 4-axis machining center with control SIEMENS SIN840 D,
tower magazine with 240 places (4 towers), 6-fold pallet changer,
coolant through the spindle, coolant filter, chip conveyor.
Replacement milling spindle available (unused)

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal MAZAK FH 4800

Stiens Werkzeugmaschinen GmbH
Mittelweg 92
59302 Oelde
Deutschland

+49 252283490
(0049) - 2522 - 8349-20
info@stiens.de
www.stiens.de

#1039-8942 · Machining Center - Horizontal

MAZAK - FH 4800 - - 2001 - PC Fusion 640M Mazatrol

Technical details

x-travel 560 mm︱y-travel 610 mm︱z-travel 560 mm︱Control PC Fusion 640M Mazatrol︱Main spindle: ︱turning speed range - main spindle 35 - 12.000 min/-1︱power capacity - main spindel 22 / 15 kW︱transmission ratio 1 ︱tool taper HSK-A63 ︱pallet changer: ︱Number of pallet-stations 10 pos.︱size of pallet 400 x 400 mm︱max. workpiecediameter 610 mm︱max. workpiece height 710 mm︱max. workpiece weight 400 kg︱b - axis 1 °︱distance spindle center to table 50 - 660 mm︱distance Spindlenose and center of table 150 - 710 mm︱Tool-Presetter: ︱number of toolpositions 120 pos.︱

CNC-Machiningcenter Horizontal MAZAK - FH 4800 - 10-pos. pallet-changer - 120-pos. tool-magazine - incl. 4 Clamping-Towers

x-travel 560 mm

y-travel 610 mm

z-travel 560 mm

Control PC Fusion 640M Mazatrol

turning speed range - main spind. 35 - 12.000 min/-1

power capacity - main spindel 22 / 15 kW

transmission ratio 1

tool taper HSK-A63

Number of pallet-stations 10 pos.

size of pallet 400 x 400 mm

max. workpiecediameter 610 mm

max. workpiece height 710 mm

max. workpiece weight 400 kg

b - axis 1 °

distance spindle center to table 50 - 660 mm

distance Spindlenose and center . 150 - 710 mm

number of toolpositions 120 pos.

Description :

CNC-Machiningcenter Horizontal
MAZAK - FH 4800

- 10-pos. pallet-changer
- 120-pos. tool-magazine
- incl. 4 Clamping-Towers

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal ELHA FM3+X

INTER-PLAST
42-209 Czestochowa

+48 343 627 904
+48 785 198 061
iweta@inter-plast.com.pl
www.inter-plast.com.pl

#1129-503 · Machining Center - Horizontal

ELHA - FM3+X - - 2001 -

Technical details

x-travel 400 mm︱y-travel 1000 mm︱z-travel 500 mm︱total power requirement 60 kW︱weight of the machine ca. 15 t︱dimensions of the machine ca. m︱

x-travel 400 mm

y-travel 1000 mm

z-travel 500 mm

total power requirement 60 kW

weight of the machine ca. 15 t

Datasheet

used Boring mills / Machining Centers / Drilling machines Machining Center - Horizontal STARRAG-HECKERT CWK 400D

Kemmerich Werkzeugmaschinen
Im Rottfeld 1a
40789 Monheim am Rhein
Deutschland

+49 2173 207474
+49 2173 207473
info@kemmerich.biz
www.kemmerich.biz

#1020-19773 · Machining Center - Horizontal

STARRAG-HECKERT - CWK 400D - - 2001 - Siemens 840 D

Technical details

x-travel 650 mm︱y-travel 650 mm︱z-travel 650 mm︱control Siemens 840 D ︱tool taper SK 40 ︱spindle turning speed - stepless 10000 U/min︱power capacity at 100 % load 19 kW︱feed X/Y/Z-axis 82000 mm/min︱rapid traverse X/Y/Z 40 m/min︱feed force X/Y/Z axis 12 / 14.000 N︱B-axis 360 x 1 °︱table rotation speed 25,00 U/min︱table load 300 kg︱size of pallet 400 x 500 mm︱total power requirement 75 kVA︱weight of the machine ca. 12,5 t︱dimensions of the machine ca. 8,8 x 4,6 x 3 m︱

Horizontal machining center with: - SIEMENS SINUMERIK 840D control system - 8-fold pallet changer (400x500mm) - coolant system with paper belt filter - IKZ - chip conveyor - cooling unit - B-axis 360 x 1° - tool magazine 240-fold (SK 40) - tool breakage control

x-travel 650 mm

y-travel 650 mm

z-travel 650 mm

control Siemens 840 D

tool taper SK 40

spindle turning speed - stepless 10000 U/min

power capacity at 100 % load 19 kW

feed X/Y/Z-axis 82000 mm/min

rapid traverse X/Y/Z 40 m/min

feed force X/Y/Z axis 12 / 14.000 N

B-axis 360 x 1 °

table rotation speed 25,00 U/min

table load 300 kg

size of pallet 400 x 500 mm

total power requirement 75 kVA

weight of the machine ca. 12,5 t

dimensions of the machine ca. 8,8 x 4,6 x 3 m

Description :

Horizontal machining center with:
- SIEMENS SINUMERIK 840D control system
- 8-fold pallet changer (400x500mm)
- coolant system with paper belt filter - IKZ
- chip conveyor
- cooling unit
- B-axis 360 x 1°
- tool magazine 240-fold (SK 40)
- tool breakage control

Datasheet

Get a used horizontal machining center from LagerMaschinen.

LagerMaschinen can provide you with a used horizontal machining center.

A horizontal machining center is a machining tool used to machine materials such as metal and wood. In contrast to a vertical machining center the cutter on a horizontal machining center is oriented horizontally meaning the machine will cut horizontally. Furthermore the cutters are not stationary one can move the cutters along a radius giving you more flexibility with your machining. Some variations of the horizontal machining center include a table that rotates as well giving you universal pivoting while you are working. These machines come in all sizes from small tabletop machines to machines the size of a large room. Many also work with computer numerical control (CNC) while others are operated manually or mechanically. Regardless of the type of horizontal machining center you need LagerMaschinen is sure to have a machine that safely satisfies your needs.

LagerMaschinen guarantees quality used machines for all your needs.

Your company may have a number of reasons to purchase a horizontal machining center: these machines can be used to cut grooves in materials to create contours and puncture holes. If your business involves machining in any form a horizontal machining center is an essential part of your equipment. However the cost of new machines can sometimes be prohibitive in particular for small and medium-sized companies. LagerMaschinen has a worldwide network and ensures that its used machines meet rigorous standards so that you do not lose quality. Buy a used horizontal machining center from LagerMaschinen and rest assured that you have a quality product.

TOP Manufacturer:

MORI SEIKI - HELLER - MAZAK - HÜLLER-HILLE - DMG - STARRAG HECKERT - MAKINO - OKUMA - HÜLLER HILLE - DECKEL-MAHO -
