Pillar Drilling Machine

bore capacity in steel (diameter) 35 mm︱throat 400 mm︱bore stroke 200 mm︱spindle taper MT 4 ︱table surface area 400 x 400 mm︱spindle turning speed range 73 - 1415 U/min︱feeds 0,1-0,2-0,3-0,4 mm/U︱table adjustable in height 1000 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of machine L x W x H 0,55 x 1,1 x 2,4 m︱

---

Accessories: drill chuck RÖHM, coolant

bore capacity in steel (diameter) 60 mm︱throat k.A. mm︱bore stroke 215 mm︱spindle taper MK 5 ︱weight of the machine ca. 2000 kg︱dimensions of the machine ca. 1300 x 800 x 2450 mm︱

---

bore capacity in steel (diameter) 35 mm︱throat 340 mm︱bore stroke 180 mm︱tool taper MK 4 ︱turning speed range - stepless 45 - 1400 U/min︱feed stepless 0,04 - 0,35 mm/U︱motor speeds: 3 ︱table-size 500 x 500 mm︱weight of the machine ca. 900 kg︱dimensions of the machine ca. 1000 x 500 x 1950 mm︱

---

inkl. working light function not tested

bore capacity in steel (diameter) 14 mm︱throat 200 mm︱bore stroke 60 mm︱morse taper 1 MK︱table: 280 x 260 mm︱turning speeds 430 - 4500 U/min︱column diameter 70 mm︱weight 100 kg︱

---

** NEW ALZMETALL MODEL RANGE ** 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - automatic spindle feed with feed overload protection - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 12. LED machine light - 24. Coolant system A * in the machine base

bore capacity in steel (diameter) 23 mm︱throat 250 mm︱bore stroke 100 mm︱morse taper 2 MK︱table: 360 x 290 mm︱turning speeds 280 - 2800 U/min︱column diameter 105 mm︱total power requirement 1,1 kW︱dimensions 500 x 550 x 1800 mm︱weight 175 kg︱

---

bore capacity in steel (diameter) 28 mm︱throat 200 mm︱bore stroke 105 mm︱spindle taper MK 3 ︱number of spindle speeds 12 ︱spindle speed: 35 - 5600 Upm︱column diameter 92 mm︱table-size 340 x 360 mm︱table rotating 360 °︱total power requirement 1,5 kW︱weight of the machine ca. ca. 170 kg︱dimensions of the machine ca. ca. 750 x 500 x 1800 mm︱

---

bore capacity in steel (diameter) 23 / 28 mm︱throat 260 mm︱bore stroke 120 mm︱tool taper MK 3 ︱table-size 500 x 350 mm︱column diameter 100 mm︱total power requirement 1,3 kW︱weight of the machine ca. 400 kg︱dimensions of the machine ca. 800 x 600 x 1750 mm︱

---

Machine info - right-left rotation - stepless speed adjustment - automatic feed 0,1/ 0,16 / 0,25

bore capacity in steel (diameter) 23 mm︱throat 300 mm︱bore stroke 150 mm︱table-size 300 x 410 mm︱spindle taper MK 2 ︱total power requirement 1,4 kW︱weight of the machine ca. ca. 315 kg︱dimensions of the machine ca. ca. 700 x 900 x 1900 mm︱

---

bore capacity in steel (diameter) 40 mm︱throat 297 mm︱bore stroke 120 mm︱speeds 8 / 75 - 1600 U/min︱table-size 500 x 460 mm︱spindle taper MK 4 ︱column diameter 115 mm︱spindle feeds: 3 / 0,1 - 0,26 mm/U︱distance spindle /table 715 mm︱distance spindle/base plate 1180 mm︱engine output 1,5 kW︱table rotating 360 Grad︱weight of the machine ca. 335 kg︱dimensions of the machine ca. 0,5 x 0,76 x 1,89 m︱Electric 380 Volt ︱Cooling pump in machine base ︱Machinelight ︱

---

Heavy geared boring machine with digital display for speed and drilling depth, hardened gears, thick-walled column, large table and base plate with T-slots, motorized table adjustment, electromagnetic feed engagement by means of snaps on the control lever. Machine not much used from the demonstration area. Machine dealer with own stock of 1600 m².

bore capacity in steel (diameter) 32 mm︱throat 310 mm︱bore stroke 175 mm︱short taper MK 4 ︱feeds 0,1+0,2+0,3+0,4 mm/U︱table-size 570 x 475 mm︱spindle turning speed - stepless 60 - 1600 U/min︱column diameter 130 mm︱distance between table/spindle max. 790 mm︱threading ST 60/GG 20 max. M 27 / M 36 ︱drilling capacity steel/cast iron 40 mm︱distance spindle/base plate 1210 mm︱total power requirement 1,1/1,8 kW︱weight of the machine ca. 450 kg︱range L-W-H 960 x 650 x 1950 mm︱Electric 400 Volt ︱Thread cutting device ︱Stepless turning speed regulation ︱electromagnetic feed ︱Cooling pump in machine base ︱

---

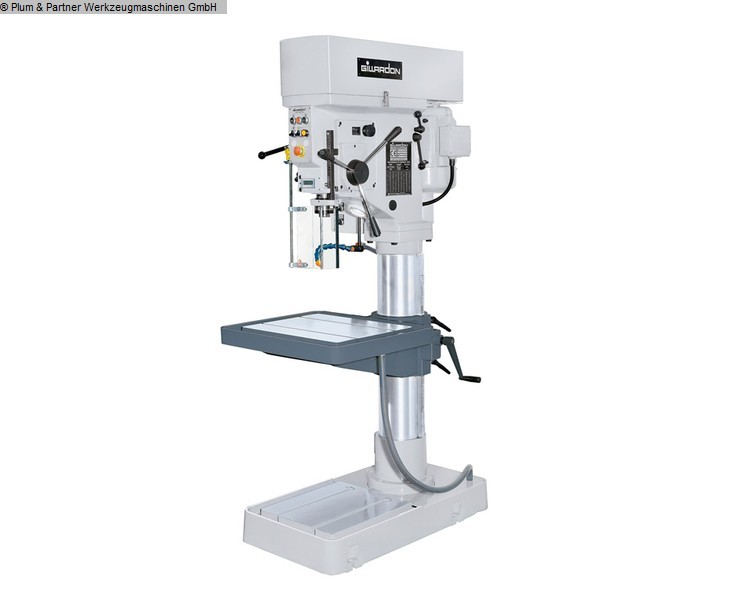

Pillar drill with stepless speed control, 2-stage motor, autom. Spindle feed, electromagnetic feed engagement, tapping device, tachometer, prepared for coolant device. Gillardon = German branded product. Machine dealer with own stock of 1600 m².

bore capacity in steel (diameter) 28 mm︱throat 295 mm︱bore stroke 175 mm︱short taper MK 3 ︱feeds 0,1+0,2+0,3+0,4 mm/U︱table-size 510 x 425 mm︱spindle turning speed - stepless 60 - 1600 U/min︱column diameter 115 mm︱distance between table/spindle max. 850 mm︱threading ST 60/GG 20 max. M 20 / M 24 ︱drilling capacity steel/cast iron 32 mm︱distance spindle/base plate 1320 mm︱total power requirement 0,7/1,3 kW︱weight of the machine ca. 410 kg︱range L-W-H 960 x 650 x 1950 mm︱Electric 400 Volt ︱Thread cutting device ︱Stepless turning speed regulation ︱Colling unit with separate container ︱electromagnetic feed ︱

---

Pillar drill with stepless speed control, 2-stage motor, autom. Spindle feed, electromagnetic feed engagement, tapping device, tachometer, prepared for coolant device. Gillardon = German branded product. Machine dealer with own stock of 1600 m².

Drilling capacity in St 60 40 mm︱threading in St 60 M 24 mm︱threading in GG 20 M 30 ︱bore stroke 120 mm︱Short spindle MK 3 ︱throat 293 mm︱column diameter 115 mm︱Machine table - usable table surface 514 x 360 mm︱T-Slots Amount - Width - Distance 2 x 14 x 224 mm︱Distance spindle - machine table min./max. 117 / 701 mm︱feed 0,10 + 0,20 mm/U︱spindle turning speed range 160 - 2250 UpM︱total power requirement 1,45 / 1,9 kW︱height of the machine 1840 mm︱weight of the machine ca. 285 kg︱

---

Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pump with motor protection switch, complete fitting

bore capacity in steel (diameter) 30 mm︱throat 293 mm︱bore stroke 140 mm︱spindle taper MT 3 ︱column diameter 115 mm︱table surface area 514 x 360 mm︱spindle turning speed - stepless 225 - 4300 U/min︱total power requirement 1,0 / 1,6 kW︱weight of the machine ca. 260 kg︱dimensions of the machine ca. H: 1790 mm︱

---

bore capacity in steel (diameter) 34 mm︱throat 300 mm︱bore stroke 150 mm︱bore capacity in cast iron (diameter) 40 mm︱thread capacity M 27 ︱spindle taper MT 4 ︱spindle speeds: Stufenlos 100 - 2000 U/min︱column diameter 125 mm︱automatic feeds 3 / 0,1 - 0,2 - 1,3 ︱table: 400 x 420 mm︱Drive Keilriemen ︱total power requirement 3 kW︱weight of the machine ca. 360 kg︱dimensions of the machine ca. 2,3 x 0,6x 1,1 m︱

---

Column drilling machines - V-belt drive with foot switch - Drilling machine of circular column feed automaticmechanical - Drive by electronic wide V-belt - Spindle taper: CM 4 - Stepless speed adjustment with frequency converter - Potentiometer for speed adjustment - digital speed display - Automatic feed reversal when threading - Scale with adjustable drilling depth - automatic tool ejector - Push button for EMERGENCY STOP switch for right/left rotation - Electronic control integrated in the drill head - integrated coolant device - Machine light - height-adjustable chip protection disc with micro switch - fixed table - CE marking

Drilling capacity in St 60 40 mm︱threading in St 60 M 24 ︱threading in GG 20 M 30 ︱Short spindle MK 3 ︱spindle stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱Machine table - usable table surface 514x360 mm︱T-Slots Amount - Width - Distance 2x14x224 mm︱distance spindle /table 117/701 mm︱Spindle Speed 160-2250 U/min.︱weight 260 kg︱

---

40 mm︱ M 24 ︱ M 30 ︱spindle turning speed - stepless 160-2250 U/min︱ MK 3 ︱spindle stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱ 515x360 mm︱distance spindle /table min./max. 117/701 mm︱ 2 x 14 x 224 mm︱feed 0,1 + 0,2 mm/U︱Machine height 1840 mm︱

---

Standard equipment: - Main switch with motor protection switch lockable - Mushroom pushbutton (latching) for EMERGENCY STOP - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Spindle protection with electrical protection Pos. 20.1 Tapping device with foot switch, for thread cutting with Stop, max. 6 threads / min., (Tapping power dependent on spindle speed) Pos. 24 Coolant device A, consisting of: Coolant base plate with machined Workpiece support surface 320x320 mm and 2 T-slots, pump with Motor protection switch, complete fitting

23 mm︱threading in St 60 M14 ︱threading in GG 20 M16 ︱ MK 2 ︱ 125-2400 U/min.︱spindle stroke 100 mm︱throat 250 mm︱column diameter 90 mm︱ 370x300 mm︱ 2x14x160 mm︱distance spindle /table min./max. 140/670 mm︱ Handkurbel ︱feed von Hand ︱height of the machine 1770 mm︱weight of the machine ca. 180 kg︱

---

26 mm︱ 30 mm︱ 30 mm︱threading in St 60 M 20 ︱threading in GG 20 M 24 ︱ MK 3 ︱ 120-2.200 U/min.︱throat 293 mm︱ 514x360 mm︱ 2 x 14 x 224 mm︱ 90/675 mm︱column diameter 115 mm︱spindle stroke 160 mm︱feeds 0,1-0,2-0,3-0,4 mm/U︱total power requirement 1,0/1,6 kW︱Machine height 1865 mm︱weight 380 kg︱

---

Standard equipment: 7 "" TFT LCD display with touch function: manual input of spindle speed Setpoint, actual speed display, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU - Thread cutting device, for thread cutting with stop, max. 6th Thread / min (thread cutting performance dependent on spindle speed), thread depth adjustable via depth stop and in the TFT - LCD display (4 tools) - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical protection - Three separate buttons for clockwise - counterclockwise - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD structured paint signal white RAL 9003, PANTONE 7545c, black - Electromagnetic feed clutch with overload protection and electrical comfort cross-handle switch - Machine oil first filling: oil bottle, loose delivery Pos. 20.5 Foot switch, in addition to the thread cutting device for switching the Spindle direction of rotation in the process Pos. 37.5 Technology computer in the display. The technology computer guides you through the Machining task. Determination of the cutting data using the following parameters: Manufacturing process, tool diameter, cutting speed, Material table, transfer function of the spindle speed as setpoint

bore capacity in steel (diameter) 55,0 mm︱throat 300 mm︱bore stroke 140 mm︱morse taper 4 MK︱table: 615 x 430 mm︱turning speeds 70 - 1.200 U/min︱engine output 1,8 / 2,9 kW︱column diameter 145 mm︱thread M30 ST60︱thread M36 GG20︱feed 0,10 + 0,30 mm/U︱weight 380 kg︱Machine height 1850 mm︱

---

** NEW ALZMETALL MODEL RANGE ** 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Thread cutting device * for thread cutting with a stop * max. 6 threads / min (thread cutting performance depends on the spindle speed) * Thread depth adjustable via depth stop * in the TFT - LCD display (3 tools). - automatic spindle feed with feed overload protection - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD textured paint signal white RAL 9003, PANTONE 7545c, black - Machine oil first filling: oil bottle, loose delivery including special accessories: - 12. LED machine light - 24. Coolant system A * in the machine base

bore capacity in steel (diameter) 32 mm︱throat 300 mm︱bore stroke 160 mm︱morse taper 4 MK︱table: 460 x 460 mm︱turning speeds 75 - 3200 U/min︱engine output 1,5 kW︱column diameter 125 mm︱thread M16 ST60︱feed 0,10/0,18/0,26 mm/U︱dimensions 800 x 500 x 2200 mm︱weight 350 kg︱

---

- automatic drill feeds (magnetic clutch) - Height adjustable and angle adjustable table - Movable work table - Integrated cooling system - Powerful engine - 3 hand levers for drilling feed - Safety shield with limit switch - Separate emergency stop - Built-in working lights - Incl. drill chuck 16mm - B16 - Built-in automatic thread cutting.

Drilling capacity in St 60 40 mm︱threading in St 60 M 24 ︱threading in GG 20 M 30 ︱Short spindle MK 3 ︱bore stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱Machine table - usable table surface 514x360 mm︱T-Slots Amount - Width - Distance 2 x 14 x 224 mm︱Distance spindle - machine table min./max. 117/701 mm︱feed 0,10 + 0,20 mm/U︱spindle turning speed range 160-2.250 UpM︱total power requirement 1,45/1,9 kW︱height of the machine 1840 mm︱weight of the machine ca. 285 kg︱

---

Standard equipment: 7 "TFT - LCD display with touch function: manual input of spindle speed Setpoint, speed display actual value, integrated drilling depth display with touch Zero point transfer, virtual drilling depth scale in the display, machine Status displays and warnings in the display, service information, selectable User language: DE / EN / FR / ES / IT / NL / RU Pos. 37.5 Technology computer in the display. The technology computer guides you through the machining task. Determination of the cutting data using the following parameters: manufacturing process, tool diameter, cutting speed, material table, transfer function of the spindle speed as setpoint

40 mm︱ M 24 ︱ M 30 ︱spindle turning speed - stepless 160-2250 U/min︱ MK 3 ︱spindle stroke 120 mm︱throat 293 mm︱column diameter 115 mm︱ 515x360 mm︱distance spindle /table min./max. 117/701 mm︱ 2 x 14 x 224 mm︱feed 0,1 + 0,2 mm/U︱Machine height 1840 mm︱

---

Standard equipment: - Main switch with motor protection switch lockable - Mushroom pushbutton (latching) for EMERGENCY STOP - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Spindle protection with electrical protection Pos. 20.1 Tapping device with foot switch, for thread cutting with Stop, max. 6 threads / min., (Tapping power dependent on spindle speed) Pos. 24 Coolant device A, consisting of: Coolant base plate with machined Workpiece support surface 320x320 mm and 2 T-slots, pump with Motor protection switch, complete fitting

bore capacity in steel (diameter) 40 mm︱throat 293 mm︱bore stroke 120 mm︱spindle taper MT 3 ︱column diameter 115 mm︱table surface area 514 x 360 mm︱spindle turning speed - stepless 160 - 2250 U/min︱total power requirement 1,45 / 1,90 kW︱weight of the machine ca. 285 kg︱dimensions of the machine ca. H: 1840 mm︱

---

- 7"TFT LCD display with touch function: * Manual input of spindle speed setpoint * Speed display actual value * Integrated drilling depth display with touch zero point transfer * Virtual drilling depth scale in the display * Service information * Selectable user language: DE/EN/FR/ES/IT/NL/RU - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (locking) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts, protection class IP54 - Feed overload protection - Machine oil first fill; Oil bottle, loose delivery - Paint finish: DD structure paint signal white RAL 9003, Pantone 7545c, black

40 mm︱bore capacity in cast iron 46 mm︱ 50 mm︱ M 30 ︱ M36 ︱ MK 4 ︱throat 300 mm︱ 100-1600 U/min.︱ 615x430 mm︱ 2x14x224 mm︱Distance spindle/table max. 147/688 mm︱column diameter 145 mm︱spindle stroke 160 mm︱feeds 0,1-0,2-0,3-0,4 mm/U︱height of the machine 1885 mm︱drive motor 1,8/2,9 kW︱weight of the machine ca. 450 kg︱

---
