Surface Grinding Machine - Horizontal

grinding length 1000 mm︱grinding width 300 mm︱workpiece height 230 mm︱table surface area 1000 x 240 mm︱x-travel 1000 mm︱y-travel 270 mm︱z-travel 350 mm︱grinding wheel diameter 240 mm︱grinding spindle speed 2180 U/min︱table speed -stepless- 3 - 30 m/min︱total power requirement 4,5 kW︱weight of the machine ca. 2,8 t︱dimensions of machine L x W x H 2,36 x 1,37 x 2,0 m︱

---

Accessories: magnetic plate 680 x 200 mm, grinding wheel with flange (ø 240 x 25 mm), wet grinding attachment

weight of the machine ca. 1.700 t︱ weitere Daten folgen ︱workpiece height mm︱grinding width mm︱Control ︱

---

grinding length 1200 mm︱grinding width 700 mm︱weight of the machine ca. 7,6 t︱total power requirement kW︱dimensions of the machine ca. m︱workpiece height mm︱

---

automatic infeed electro magnet plate dressing device coolant device Technische Daten / technical details: max. Schleiflänge / max. grinding length 1200 mm max. Schleifbreite / max. grinding width 700 mm Magnetspannplatte / magnet clamping plate 1200x600 mm X-Achse, Tischlängshub / X-axis table longitudinal travel 1600 mm Z-Achse, Querweg / Z-axis cross travel 650 mm Drehzahlbereich / spindle speed 1000-3000 UpM Schleifscheibenabmessungen / grinding wheel dimensions 400x80x127 mm Antriebsleistung Spindelmotor / drive capacity spindle 11 kW Gewicht ca. / weight ca. 7600 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

grinding length 1250 mm︱grinding width 600 mm︱workpiece height mm︱Control SIEMENS LC 200 / TP277 ︱total power requirement kW︱weight of the machine ca. 7,7 t︱dimensions of the machine ca. m︱

---

CNC precision, surface and profile grinding machine CNC control SIEMENS LC 200 / TP277 Table load maximum to the magnetic chuck 1200 kg Drives: X-axis drive hydraulic Y and Z-axis drive with servo drive and ball screw measuring system: X-axis rotary with rotary encoder Y and Z axis linear scale traverse paths X axis 1400mm Y axis 600mm Z axis 600mm Grinding length 1250 mm Grinding width 600 Distance between table and spindle center 700 mm Grinding wheel diameter 400 mm Grinding wheel width 100 mm Grinding wheel bore 127 mm

grinding length 800 mm︱grinding width 400 mm︱workpiece height 385 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

grinding length 1.200 mm︱grinding width 600 mm︱workpiece height 550 mm︱control Ergomatic Blohm︱Grinding spindle: ︱max. spindle speed 1.450 1/min︱driving power - grinding spindle 7,5 kW︱grinding wheel diam. min/max. 190 / 400 mm︱grinding wheel wide min./max. 30 / 80 mm︱grinding wheel width (Standard) 50 mm︱grinding wheel hole diameter 127 mm︱movement areas: ︱x-travel 1.300 mm︱y-travel 550 mm︱z-travel 560 mm︱work table: ︱distance grinding spindle - table min./max. 150 / 700 mm︱table surface area 1.200 x 600 mm︱table height over floor 950 mm︱table adjustment - longitudinal 1.300 mm︱

---

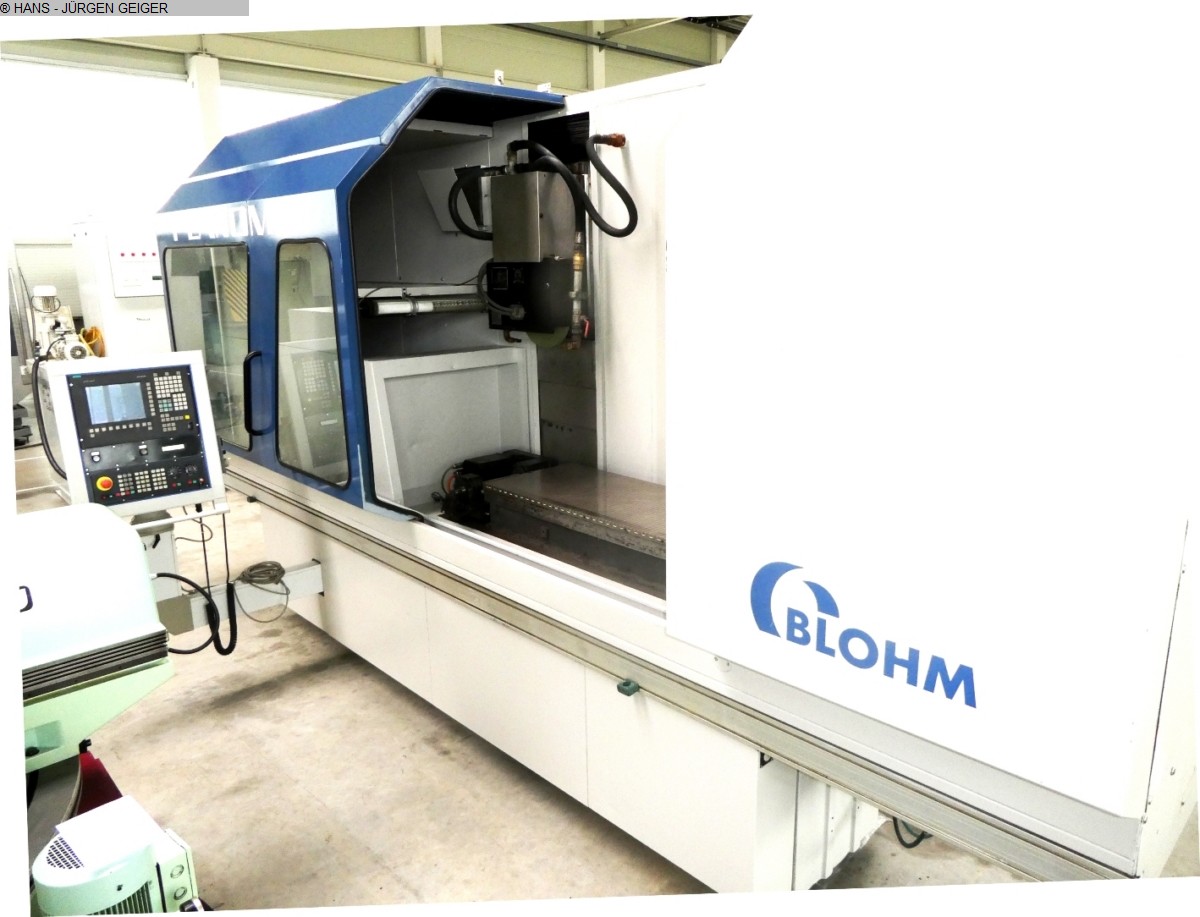

Surface Grinding Machine - Horizontal BLOHM - Planomat 612

grinding length 1500 mm︱grinding width 600 mm︱workpiece height 400 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

- automatic infeed - electro magnet - coolant device Technische Daten / technical details: Schleiflänge / grinding length 1500 mm Schleifbreite / grinding width 600 mm Werkstückhöhe / workpiece height 400 mm Längsachse X / longitudinal travel X 1600 mm Querachse Z / cross travel Z 560 mm Vertikalachse Y / vertical travel Y 400 mm Elektromagnetabmessungen / electro magnet dimensions 1500x600 mm Schleifscheibe / grinding wheel 400x100x127 mm Antriebsleistung Schleifspindel / drive capacity grinding spindle 10 kW Gewicht der Maschine ca. / weight ca. 7100 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

grinding length 1000 mm︱grinding width 600 mm︱workpiece height 600 mm︱Control Unicon F ︱total power requirement 52 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

Used, CNC profile and surface grinding machine in good working condition. CNC control Unicon F Grinding size: 1000 x 600 x 600 mm Grinding wheel dimensions: Diameter 400mm Width 100mm Bore 127mm Motor power of the grinding spindle 20 kW Speed range of the grinding spindle 1500-4500 rpm. Equipment: CNC precision rotary table, clamping area 500 mm Electric straight dresser Automatic cooling nozzle adjustment Universal paper band filter system with permanent magnetic pre-filter Cooling water cooling device Linear glass scales for Y and Z axis Grinding wheel holder Lower roll-up device Magnetic chuck Profile roller

grinding length 600 mm︱grinding width 500 mm︱workpiece height 500 mm︱table-size 800x400 mm︱table speeds 1-35 m/min︱grinding wheel diameter 400 mm︱spindle drive 11 kW︱weight of the machine ca. 4.5 t︱

---

SURFACE % PROFILE GRINDING MACHINE magnetic plate 600x300mm Dresser on table Exhausting device More details on www.marcels-maschinen.ch

grinding length 2000 mm︱grinding width 700 mm︱weight of the machine ca. 9,5 t︱total power requirement kW︱dimensions of the machine ca. m︱workpiece height mm︱

---

Abamatic control electro magnet plate pneumatic flap dresser exhaustion device coolant device with paper filtering Technische Daten / technical details: gr. Schleiflänge / max. grinding length 2000 mm gr. Schleifbreite / max. grinding width 700 mm Magnetspannplatte / magnet clamping plate 2000x600 mm Schleifscheibendrehzahl / grinding wheel speed 1000-2600 UpM / rpm Schleifscheibendurchmesser / grinding wheel dia. 400 mm Antriebsleistung Spindel / drive capacity spindle 11 kW Antriebsleistung komplett ca. / drive capacity 25 kW Gewicht der Maschine / weight 9500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

grinding length 1.000 mm︱grinding width 600 mm︱workpiece height 400 mm︱Control SINUMERK 840 D ︱Grinding Area : ︱grinding range max. 1.000 x 600 mm︱travel cross (z-axis) 540 mm︱distance table surface - grinding spindle centre max. 600 mm︱Travel vertical (Y-axis) 500 mm︱Max. working height on new grinding wheel 400 mm︱workpiece table : ︱Electro permanent magnetic plate 800 x 500 mm︱pole pitch 18 mm︱clamping force in 8 levels - ︱Table drive (X-axis) : ︱Incremental encoder in the longitudinal axis X axi - ︱table speeds 2-35.000 mm/min︱Electromechanical longitudinal movement - ︱by means of digital servo motor, - ︱toothed belt and ball screw - ︱

---

Equipment and accessories - Linear measuring systems in Y- and Z-axis - All linear axes with digital servo motors and ball screw drive - Belt filter system with paper belt filter, tank capacity 640 l, coolant pump 200 l/min/4 bar - Manual coolant nozzles - adjustable - Automatic working chamber door pneumatically controlled - Electro-permanent magnetic plate 800 x 500 mm, pendulum pole pitch 18 mm - Automatic grinding wheel balancing device Fa. MPM - Full enclosure of the working area in stainless steel partial execution with LED working area lighting - Manually operated door, safety interlock in automatic mode - Portable electronic handwheel in automatic and manual mode for all axes - Three-color signal light - Electrical equipment 400V/50Hz - Switch cabinet cooling unit - Machine feet - Painting RAL 9002 (grey white), RAL 5010 (gentian blue) - Rinsing gun with hose and holder in the operating area - Approx. 5 pcs. grinding wheel flanges *** Machine prepared for grinding mist suction *** Grinding programs - Surface grinding - Plunge grinding - Profile grinding - Automatic program sequence with roughing, finishing, fine finishing and burnout - Multiple plunge-cut grinding for economical production - Surface grinding with continuous, infinitely programmable cross feed - Calibration of the grinding wheel (calibrate, backfeed, round corners) - Face grinding with back pull dressing - Dressing in grinding cycle with lift-off amount - Fully automatic compensation of dressing amounts - Tool management Dressing Technology Table dresser -straight- TAG: Dresser fixed on the machine table, roughing and finishing station with dressing tiles are arranged one behind the other, cylindrical dressing of grinding wheels for surface and plunge grinding, suitable for corundum and silicon carbide grinding wheels, cycle software with input menu Pre-profiler VPG-150: incl. diamond roughing wheel width 1.5 mm For economical pre-profiling (roughing out) of the grinding wheel, profiling unit firmly mounted on the table, suitable for corundum and silicon carbide grinding wheels, CNC dressing cycle for pre-profiling Table profile dresser TAD: Suitable for diamond wheel DFR, D = 120, tip radius r = 0.1 - 1mm, flank angle 28°,40°, 60°. Profile depth max. 20 mm, contour accuracy +/- 0.0025 mm, swivel angle +/- 70°, profiling in the program by means of graphical operator guidance in 3-D interpolation

grinding length 1000 mm︱grinding width 600 mm︱workpiece height 450 mm︱Control Fanuc 210i - M ︱total power requirement 20 kW︱weight of the machine ca. 5,5 t︱dimensions of the machine ca. 3950 x 3150 x 2550 mm︱

---

CNC surface grinding machine Clamping area of the table 1000 x 500 mm Clamping surface for magnetic particle board 1000 x 500 mm Largest grinding surface: L x W x H 1000 x 600 x 450 mm Largest distance from table to spindle center 650 mm Table speed in the longitudinal direction 1 - 30 m / min Max. Table load 1500 kg Grinding wheel: diameter x width x bore 400 x 50 x Ø 127 mm Grinding spindle drive 7.5 kW Spindle speed 1500 rpm Connected load 20 kW Space required L x W x H 3950 x 3150 x 2550 mm Weight 5500 kg Equipment CNC control Fanuc 210i - M Electro magnetic plate 1000 x 500 mm Coolant device with paper filter Several Grinding wheels with flanges Digital display Condition machine is in good condition

grinding length max. 600 mm︱grinding width max. 250 mm︱workpiece height - mm︱control Simatic OP 27 Siemens︱grinding range 600 x 250 mm︱distance spindle center to table 500 mm︱Grinding spindle: ︱turning speed range - stepless 1.000 - 3.000 U/min︱grinding head 300 x 50 x 76,2 mm︱drive capacity - spindle motor ca. 11 kW︱axis stroke: ︱x - axis 600 mm︱Y - Axis 300 mm︱Z - Axis 250 mm︱work table: ︱magnetic clamping plate 500 x 250 mm︱max. workpiece weight 250 kg︱feeds: ︱rapid traverse ( X / Y / Z ) 30 / 2 / 1,5 m/min︱total power requirement 20 kVA︱

---

Surface Grinding Machine Horizontal Ziersch & Baltrusch - Starline 500 E - approx. 9.340 spindle hours - 4x NEW grinding wheels - 4x flanges - LTA suction with stand - Splash guard for work area (half height) - protective door - Infinitely variable speed control of the grinding spindle - Heidenhain: Incremental measuring system, incremental encoders, proximity switches

grinding length 1500 mm︱grinding width 750 mm︱workpiece height 600 mm︱Control E.C.S. CNC 2401 ︱Table dimensions 1400 x 500 mm︱table load 1700 kg︱dimensions of grinding wheel 400 x 30 x 100 mm︱grinding wheel speed 1450 U/min.︱main drive 11 kW︱table speeds 1 - 40 m/min︱cross feeds: 0 - 4 m/min︱dimensions of machine 5350 x 3100 x 2415 mm︱total power requirement kW︱weight of the machine ca. 9,4 t︱dimensions of the machine ca. m︱

---

CNC tangential grinding machine - CNC-control E.C.S. CNC 2401 System III - Magnetic worktable 1400 x 500 mm - Coolant equipment

grinding length 1600 mm︱grinding width 600 mm︱workpiece height 500 mm︱total power requirement 50 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

grinding length 600 mm︱grinding width 350 mm︱workpiece height 385 mm︱total power requirement 19 kW︱weight of the machine ca. 2,3 t︱dimensions of the machine ca. m︱

---

grinding length 1250 mm︱grinding width 700 mm︱workpiece height 400 mm︱total power requirement kW︱weight of the machine ca. 6 t︱dimensions of the machine ca. m︱

---

Maschine teilüberholt in 2021 an Kunde ausgeliefert. Kunde tauscht nun vor Umzug gegen wesentlich kleinere Maschine. Maschine ist unter Strom beim Kunden vorführbereit. Standort nähe Ulm. E.P Magnetplatte 1250mm x 500mm Werkstückgewicht 1200kg Spindelantrieb 7,5KW Schleifscheibendurchmesser 400mm Klappabrichter Öl-Rückkühler Papierbandfilter PFA 60 Teilüberholt in 2021: -Linearführungen Längsachse getauscht -diverse elektrische Leitungen erneuert -diverse pneumatische Leitungen erneuert -diverse hydraulische Leitungen erneuert -diverse Kühlmittelleitungen erneuert -Seidel Antriebe überholt -Sichtschutzscheibe erneuert -Faltenbalge erneuert -Tischzylinder neu abgedichtet -diverse Dicht- und Verschleißteile getauscht -Professionelle Teillackierung

grinding length 810 mm︱grinding width 405 mm︱workpiece height 500 mm︱electro magnetic clamping plate 800 X 400 mm︱table speed -stepless- 5 - 25 m/min︱dimensions of grinding wheel 355 X 50 X 127 mm︱total power requirement 3.7 kW︱weight of the machine ca. 3 t︱

---

automatic vertical feed, dressing devise, electro magnet,800 X 400 coolant with paperfilter, hydraulic separate

grinding length 500 mm︱grinding width 350 mm︱workpiece height 350 mm︱longitudinal feeds of table 500-20000 mm/min︱cross feed infinitely (continously) 200-2000 mm/min︱cross feed autom. 0,5-10 mm/Hub︱automatic feed of abrasive wheel 0-0,025 mm ︱grinding wheel: diameter/width/bore 250x76x32 mm︱weight of the machine ca. 1,7 t︱dimensions of the machine ca. 2,5x1,6x1,8 m︱

---

- from training workshop! - built-in wheel dressing unit - cooling unit with magnetic separator - incl.balancing device and spare flanges and wheels as seen on photo

width max. 60 mm︱ 300 mm︱ 127 mm︱ 1 ︱ 350 mm︱ 1.450 U/min︱ 850 mm︱ 300 mm︱ 750 mm︱ 0,001 mm︱ 0,001 mm︱ 0,01 - 0,05 mm︱spindle drive 7,5 kW︱ 0 - 5 m/min︱ 600 mm︱weight of the machine ca. 6,5 t︱dimensions of the machine ca. 3.900 x 2.200 x 2.500 m︱

---

grinding length 400 mm︱grinding width 250 mm︱workpiece height 200 mm︱total power requirement 9 kW︱weight of the machine ca. 3 t︱dimensions of the machine ca. 1 x 1 x 1 m︱

---

grinding length 530 mm︱grinding width 175 mm︱workpiece height 300 mm︱table surface area 450 x 250 mm︱grinding wheel size 180 x 13 mm︱grinding wheel hole diameter 31,75 mm︱distance spindle center to table 400 mm︱spindle turning speed range 3000 U/min︱dust exhaust 0,4 kW︱weight of the machine ca. 1400 kg︱dimensions of the machine ca. 1,5x 1.450 x 1,76 m︱Electric 380 Volt ︱Permanent magnetic plate 350 x 150 mm︱Cooling equipment ︱Flange ︱Machinelight ︱Machine manual ︱Condition: ready for operation ︱

---

AUTOMTIK SURFACE GRINDER OKAMOTO ACC 450 DXA FROM 1994 - used very little. WITH DRO

x-travel 750 mm︱y-travel 300 mm︱workpiece height 400 mm︱table surface area 700 x 250 mm︱magnetic plate size 650 x 250 mm︱grinding spindle speed 2880 U/min︱adjustment of spindle-head 530 mm︱table speed -stepless- 5 - 25 m/min︱cross feed 0,5 - 10 mm/Gang︱magnetic clamping plate 750 x 250 mm︱table speeds quer - 2 - 16 m/min︱distance table - lower edge bore head guide 300 mm︱feed Supprt - 0,5 -6 m/min︱vertical feed autom. 0,002 - 0,4 mm︱control voltage 24 V︱voltage 380 V / 50 Hz︱grinding motor 2,2 KW︱total power requirement 3,6 kW︱weight of the machine ca. 1,8 t︱dimensions of the machine ca. 2,2 x 2,0 x 1,6 m︱

---

hand adjustment of grinding table, automat. feed motion electric quick motion for elevation adjustment, wet grinding equipment,

grinding length 500 mm︱grinding width 250 mm︱workpiece height 250 mm︱magnetic plate size 500 x 250 mm︱total power requirement kW︱weight of the machine ca. 3 t︱dimensions of the machine ca. 2500 x 1900 x 2500 mm︱

---
